Kia Optima: Rear Door / Rear Door Trim

Kia Optima DL3 2019-2021 Service and Repair Manual / Body (Interior and Exterior) / Rear Door / Rear Door Trim

Components and components location
Component Location

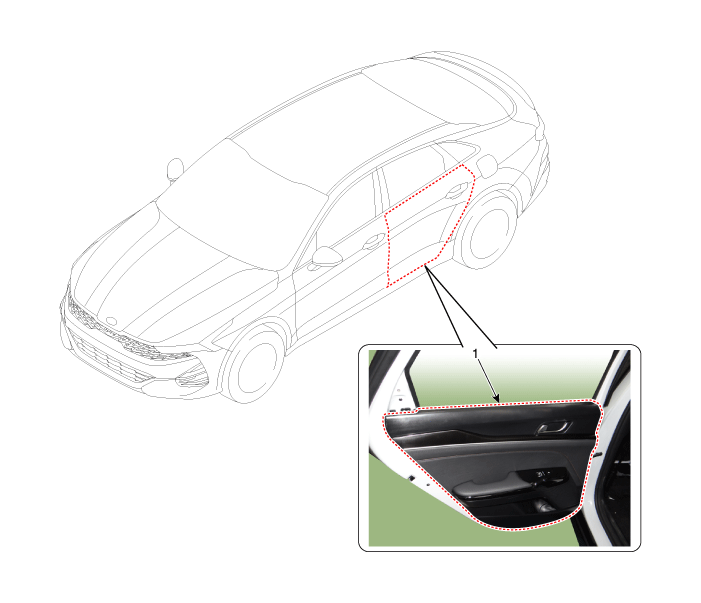

1. Rear door trim


Repair procedures
Replacement


When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

Put on gloves to prevent hand injuries.

1.

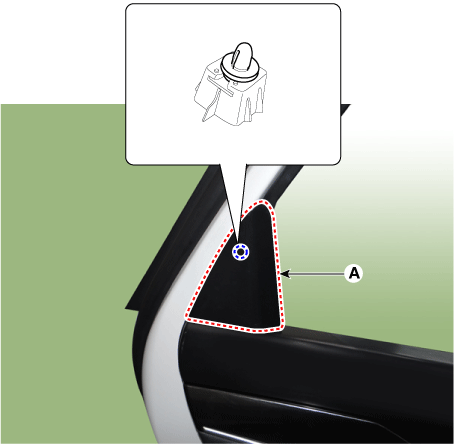

Using a remover and remove the rear door delta inner cover (A).

2.

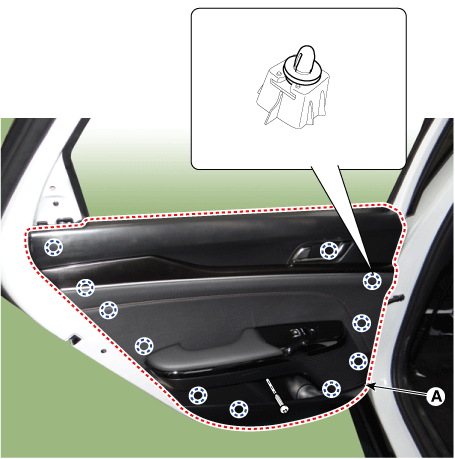

Loosen the mounting screw and remove the rear door trim (A).

3.

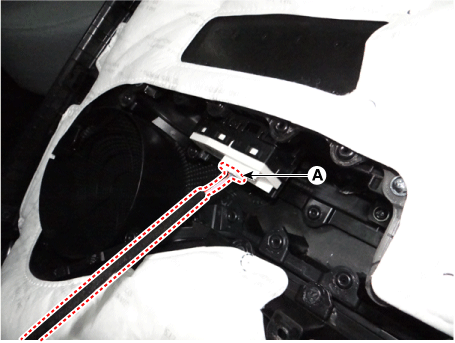

Remove the rear door inside handle cage (A).



Cage must be assembled until it makes clicks sound.

4.

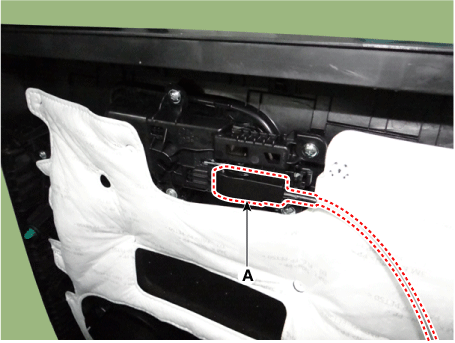

Disconnect the connector (A).

5.

To install, reverse the removal procedure.
