Kia Optima: Button Engine Start System / Start/Stop Button

Kia Optima DL3 2019-2020 Service and Repair Manual / Body Electrical System / Button Engine Start System / Start/Stop Button

Schematic diagrams

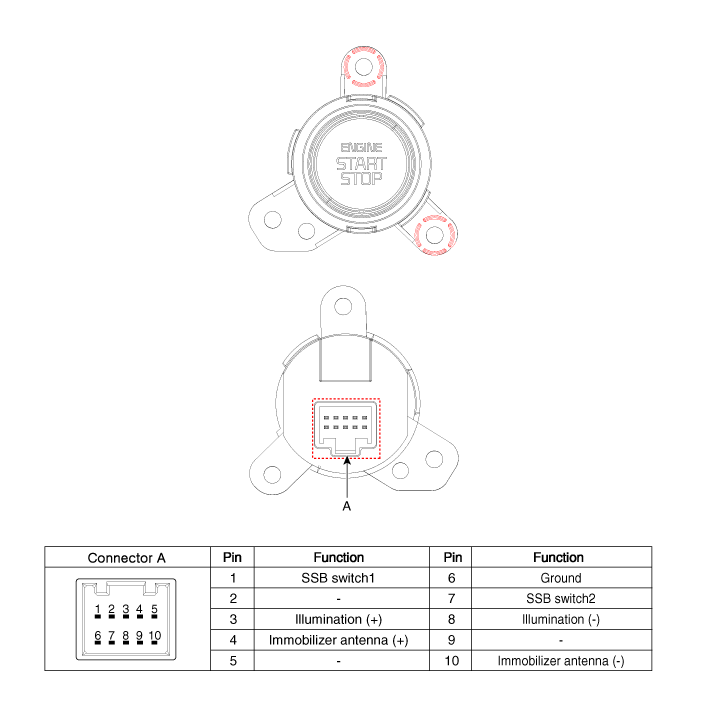

Connector and Terminal function

Repair procedures
Removal
1.

Disconnect the negative battery terminal.

2.

Remove the crash pad garnish [RH].

(Refer to Body - "Crash Pad Garnish")

3.

Remove the center air vent garnish (A) by loosening the mounting screws.

4.

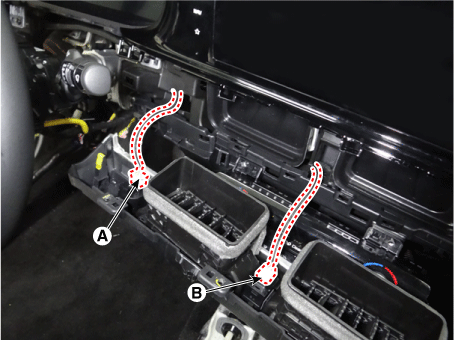

Disconnect the start/stop button connector (A) and hazard lamp switch connector (B).

5.

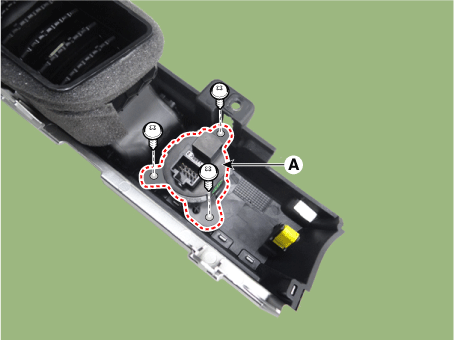

Remove the start/stop button (A) by loosening the mounting screws.

Installation
1.

Install in the reverse order of removal.
