Kia Optima: Interior features / USB charger

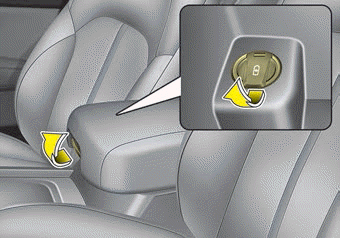

■ Front seat

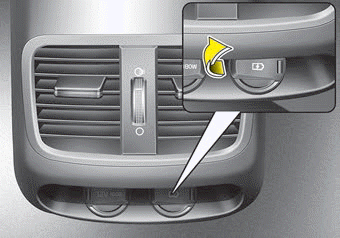

■ Rear seat
The USB charger is designed to recharge batteries of small size electrical devices
using a USB cable.The electrical devices can be recharged when the Engine Start/Stop
button is in ACC/ON/START position.
The battery charging state may be monitored on the electrical device.
Disconnect the USB cable from the USB port after use.
- Some devices are not supported for fast charging but will be charged with
normal speed.
- Use the USB charger when the engine is running to prevent battery discharge.
- Only devices that fit the USB port can be used.
- The USB charger can be used only for battery charging purposes.
