Kia Optima DL3: Body (Interior and Exterior) / Crash Pad

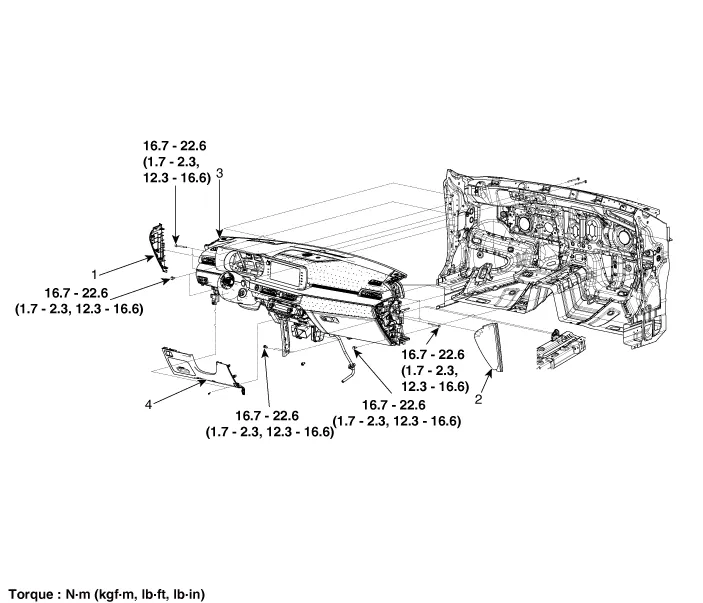

Components and components location
| Components |
| 1. Crash pad side cover [LH]
2. Crash pad side cover [RH] |
3. Crash pad assembly 4. Crash pad lower panel |
- Cluster Fascia Panel
- Crash Pad Lower Panel
- Steering Column Shroud Panel
- Crash Pad Garnish
- Glove Box
- Crash Pad Side Cover
- Crash Pad Under Cover
- Crash Pad Center Panel
- Main Crash Pad Assembly
- Cowl Cross Bar Assembly
Repair procedures Replacement • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Components and components location Component Location 1. Cluster fascia panel Repair procedures Replacement • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
