Kia Optima: Interior Trim / Door Step Trim

Kia Optima DL3 2019-2024 Service and Repair Manual / Body (Interior and Exterior) / Interior Trim / Door Step Trim

Repair procedures

Replacement

Put on gloves to prevent hand injuries.

•	When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.

•	Take care not to bend or scratch the trim and panels.

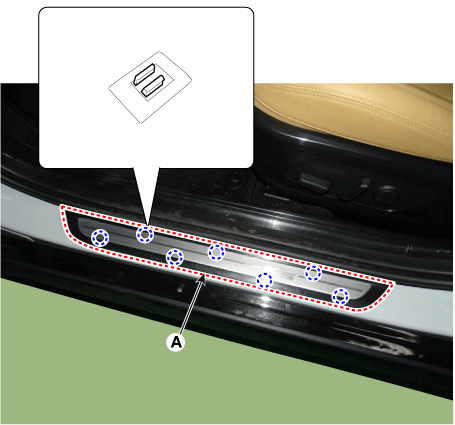

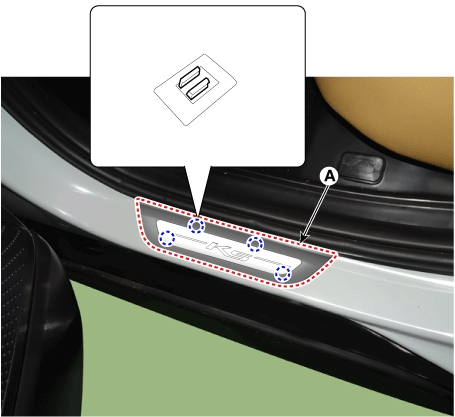

1.	Using a screwdriver or remover, remove the door step trim (A). [Front] [Rear]

To install, reverse the removal procedure.

Replace any damaged clips (or retainers or fasteners).
