Kia Optima: Drive Belt System / Drive Belt Tensioner

Kia Optima DL3 2019-2023 Service and Repair Manual / Engine Mechanical System / Drive Belt System / Drive Belt Tensioner

Components and components location
Components

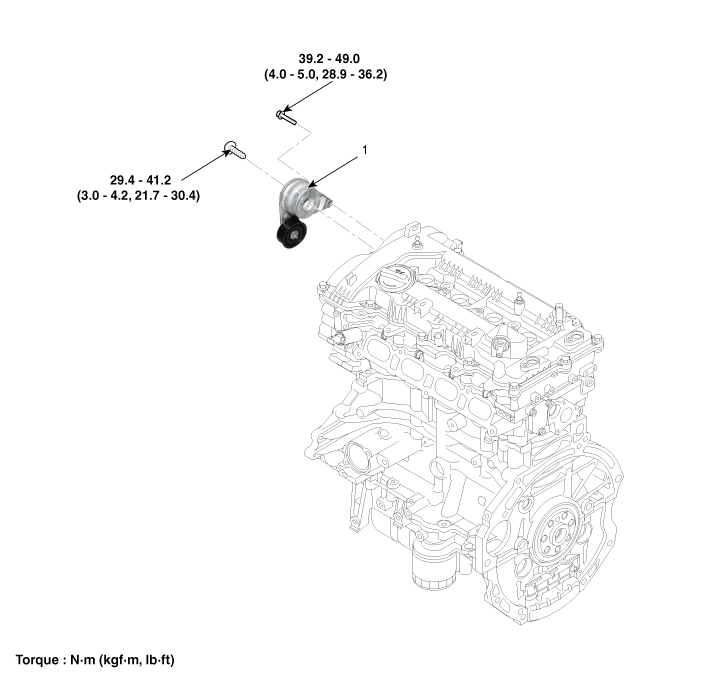

1. Drive belt tensioner

Repair procedures
Removal and Installation
1.

Remove the drive belt.

(Refer to Drive Belt System - "Drive Belt")

2.

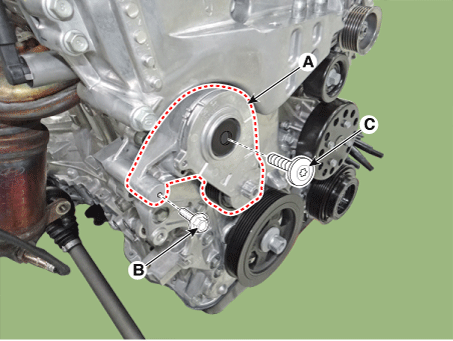

Remove the drive belt tensioner (A).

Tightening torque

Bolt (B) :39.2 - 49.0 N•m (4.0 - 5.0 kgf•m, 23.9 - 36.2 lb•ft)

Bolt (C) :29.4 - 41.2 N•m (3.0 - 4.2 kgf•m, 21.7 - 30.4 lb•ft)

3.

Install in the reverse order of removal.
