Repair procedures
Removal
1.

Disconnect the negative battery terminal.

2.

Remvoe the fuel door housing.

(Refer to Body - "Fuel Filler Door")

3.

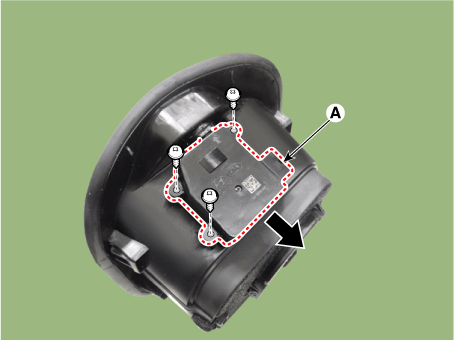

Remove the fuel filler door unlock actuator (A) by loosening the mounting screws.

Installation
1.

Install in the reverse order of removal.

Inspection
1.

Disconnect the negative battery terminal.

2.

Remove the left luggage side trim.

(Refer to Body - "Luggage Side Trim")

3.

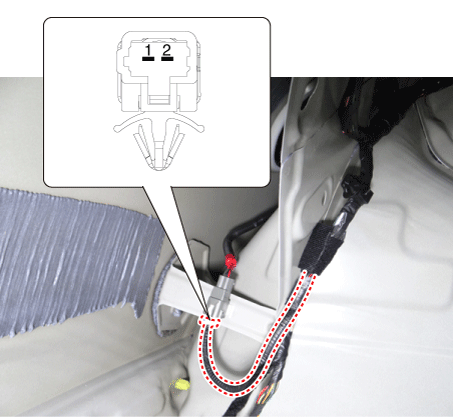

Disconnect the fuel filler door unlock actuator connector.

4.

Check for continuity between terminals No. 1 and No. 2. If there is no continuity, replace the fuel filler door unlock actuator.
