Description and operation

Discription

The heated steering wheel system improves the themal comfort of the driver by heated the steering wheel when manually selected.

Heated pad

Item	Specification
Voltage	75W ± 10 % (13.5V)
Heated pad resistance	1.95 ± 0.2Ω [21 - 23°C (69.8 - 73.4 °F)]
NTC resistance	10.0 kΩ ± 3% [25 °C (77 °F)]
NTC resistance	8.875 - 11.27 kΩ [at 23 - 27 °C (73.4 - 80.6 °F)]

Schematic diagrams

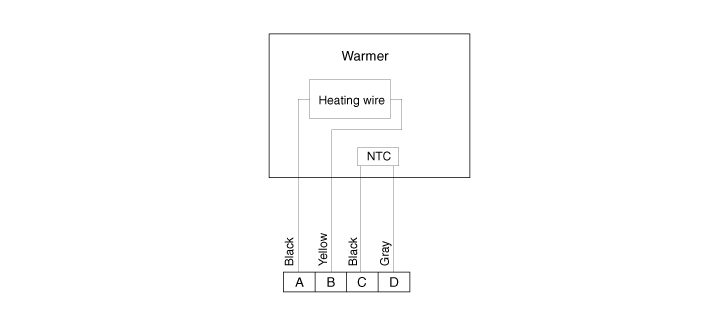

System Circuit Diagram

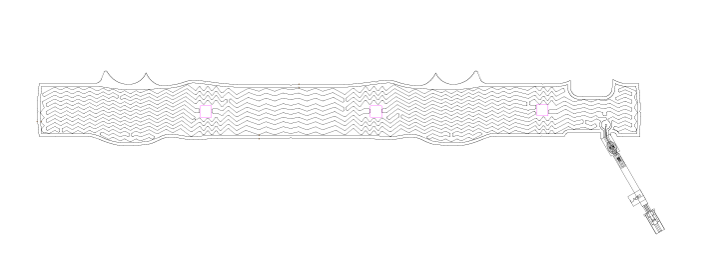

Heated steering wheel pad

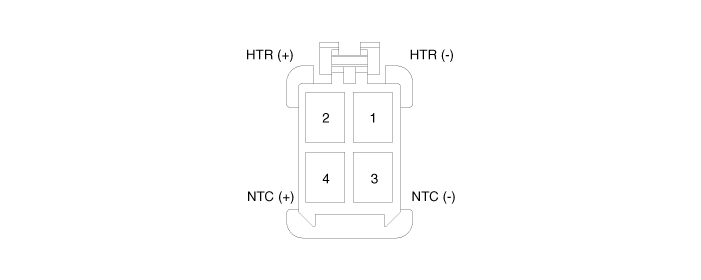

Harness Connector

Terminal Function

Housing	Pin	Function	Wire color
Pad	1	GROUND	Black
	2	HEATER	Yellow
	3	NTC -	Black
	4	NTC +	Gray

Repair procedures

Inspection

Measure a resistance of NTC and Heated pad.

–	NTC resistance (Black / Gray) : 10.0 kΩ ± 3% [25 °C (77 °F)] 8.875 - 11.27 kΩ [at 23 - 27 °C (73.4 - 80.6 °F)]

–	Heated pad resistance (Black / Yellow) : 1.95 ± 0.2Ω [21 - 23°C (69.8 - 73.4 °F)]

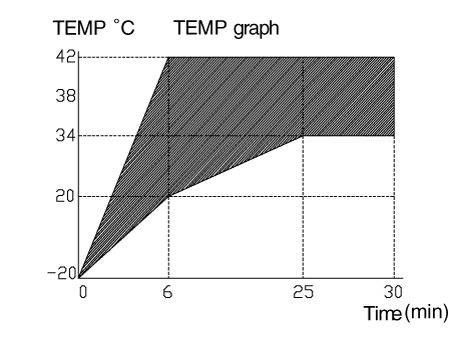

Measure a temperature.

–	The temperature of wheel surface grip must rise from -20 °C (-4 °F) to 20 °C (68 °F) within 6 minute

–	The temperature of wheel surface grip must keep 38 ± 4 °C (100.4 ± 39.2 °F) after 25 minute

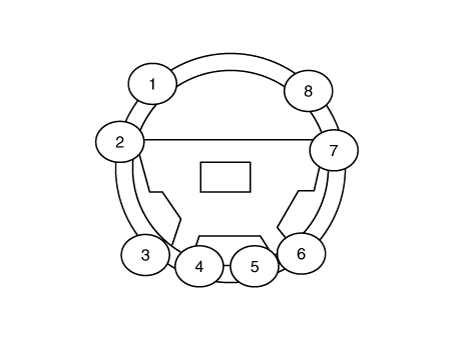

–	At that time switch on, all measure point (1 - 8)

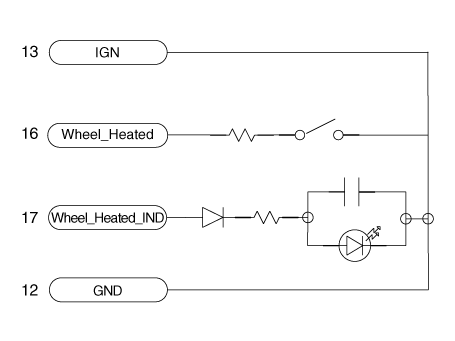

3.	Check for continuity between the terminals in each heated steering switch.
