Kia Optima DL3: Crash Pad / Cluster Fascia Panel

Kia Optima DL3 2019-2026 Service and Repair Manual / Body (Interior and Exterior) / Crash Pad / Cluster Fascia Panel

Components and components location

Component Location

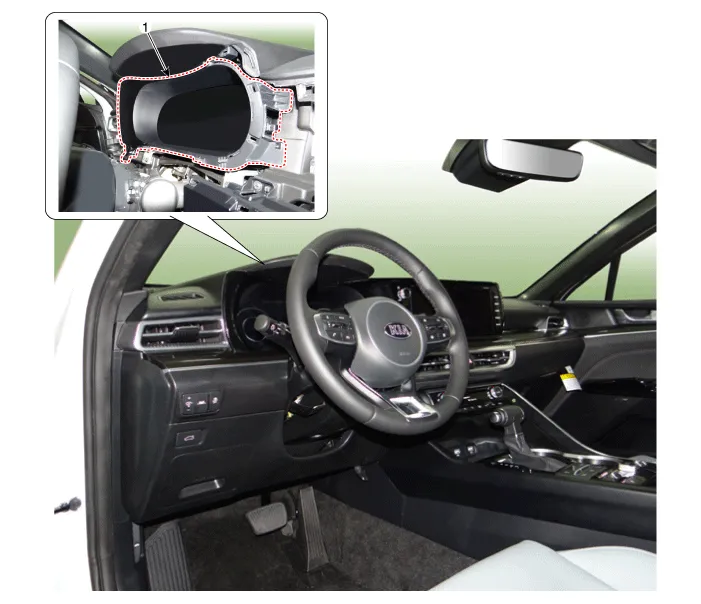

1. Cluster fascia panel

Repair procedures

Replacement

•	When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Take care not to bend or scratch the trim and panels.

•	Put on gloves to prevent hand injuries.

1.	Lower the steering wheel.

2.	Remove the crash pad lower panel. (Refer to Crash Pad - "Crash Pad Lower Panel")

3.	Remove the audio/AVN head unit. (Refer to Body Electrical System - "A/V Navigation")

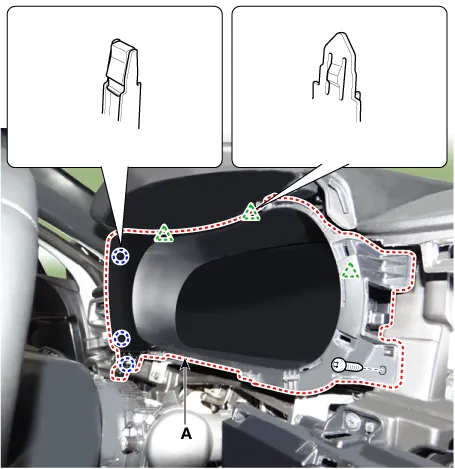

4.	Loosen the mounting screws and remove the cluster fascia panel (A).

To install, reverse removal procedure.

Replace any damaged clips (or pin-type retainers).
