Kia Optima DL3: Body (Interior and Exterior) / Front Bumper
Components and components location

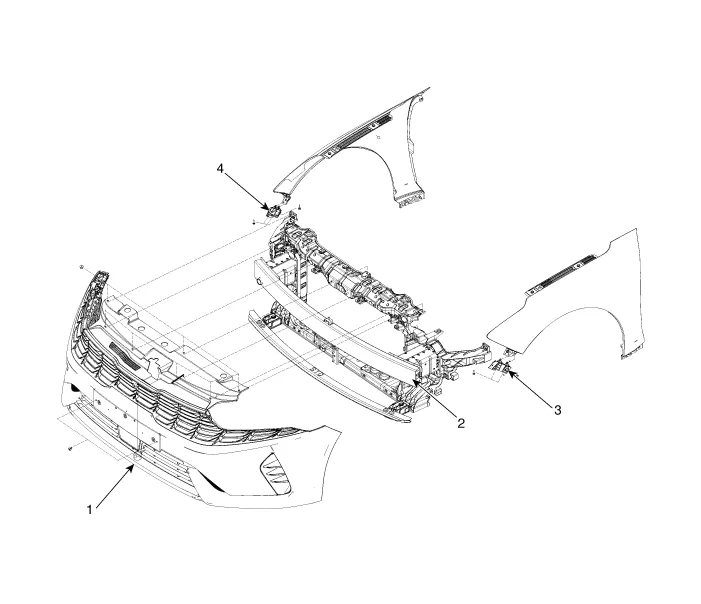

| Components |
| 1. Front bumper assembly 2. Front bumper beam assembly |
3. Front bumper side bracket
[LH] 4. Front bumper side bracket [RH] |
Repair procedures Replacement • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Components and components location Component Location 1. Front bumper assembly Repair procedures Replacement • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
