Components and components location

Components

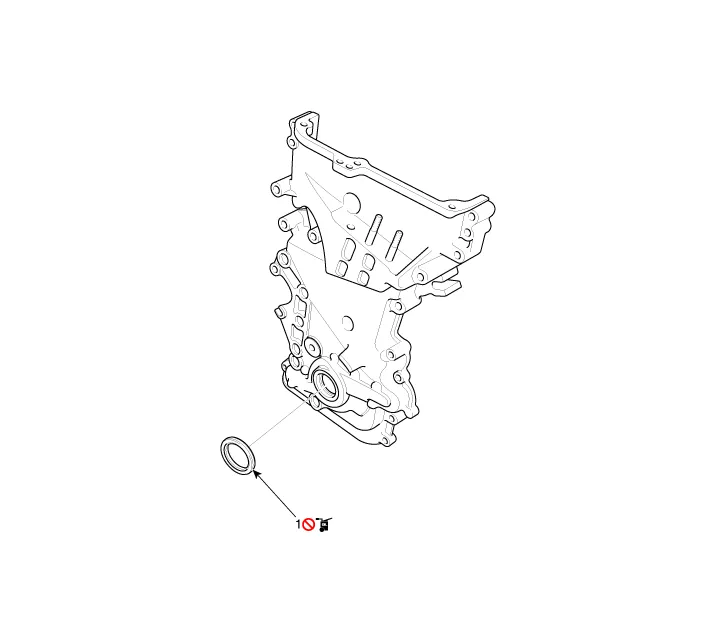

1. Front oil seal

Repair procedures

Replacement
1.

Remove the crankshaft damper pulley.

(Refer to Drive Belt System - "Crankshaft Damper Pulley")

2.

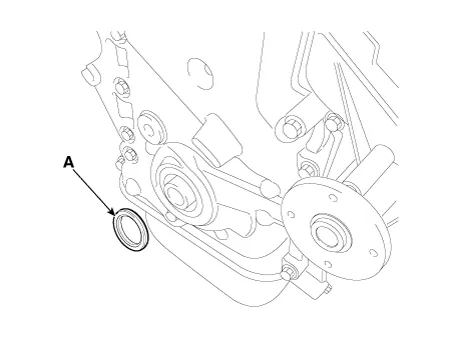

Remove the front oil seal (A).
3.

Apply engine oil on the edge of new oil seal.



Remove any debris from the lip portion of the oil seal.
4.

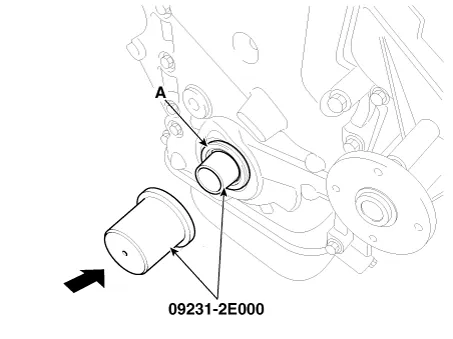

Using the SST (09231-2E000), install a front oil seal (A).



Do not reuse the front oil seal.
5.

Install the crankshaft damper pulley.

(Refer to Drive Belt System - "Crankshaft Damper Pulley")
