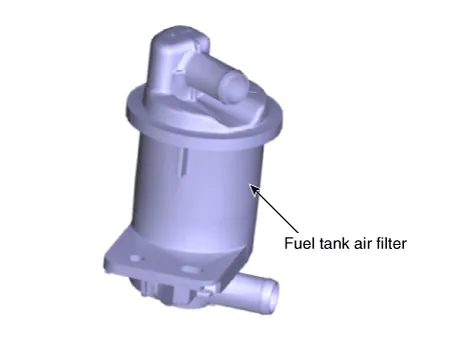

Kia Optima DL3: Evaporative Emission Control System / Fuel Tank Air Filter
Repair procedures
| Removal |
| 1. |
Disconnect the negative battery (-) terminal. |
| 2. |
Remove the [LH] rear wheel guard. (Refer to Body - "Rear Wheel Guard") |
| 3. |

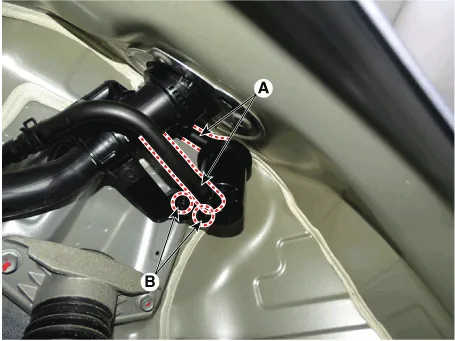

Disconnect the ventilation hoses (A) from the fuel tank air filter. |
| 4. |
Remove the fuel tank air filter (B) after loosening the mounting bolt.
|
| Installation |
| 1. |
Install in the reverse order of removal. |
Description and operation Description A ratchet tightening device on the threaded fuel filler cap reduces the chances of incorrect installation, which would seal the fuel filler.
Specifications Specification Item Specification Coil Resistance (Ω) 22.0 - 26.0 [20°C (68°F)] Schematic diagrams Circuit Diagram Harness Connector Repair procedures Inspection 1.
