Kia Optima DL3: Evaporative Emission Control System / Fuel Filler Cap
Description and operation
| Description |

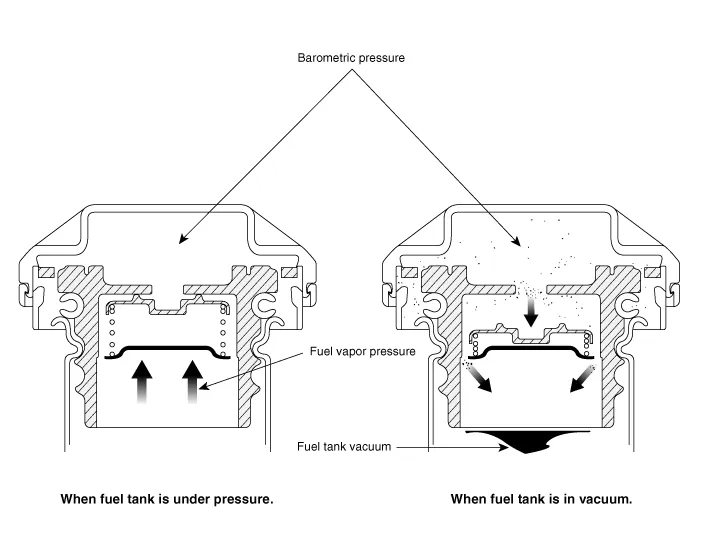

A ratchet tightening device on the threaded fuel filler cap reduces the chances of incorrect installation, which would seal the fuel filler. After the gasket on the fuel filler cap and the filler neck flange contact each other, the ratchet produces a loud clicking noise indicating the seal has been set.
Repair procedures Removal 1. Disconnect the negative (-) battery cable. 2. Remove the stabilizer bar bushing (A).
Repair procedures Removal 1. Disconnect the negative battery (-) terminal. 2. Remove the [LH] rear wheel guard.
