| Component Location |

| 1. Inside rear view mirror
|
| Replacement |
Put on gloves to prevent hand injuries. |
| 1. |

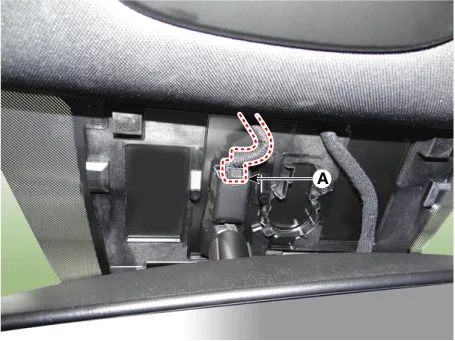

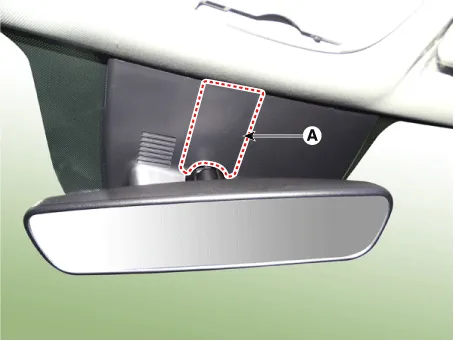

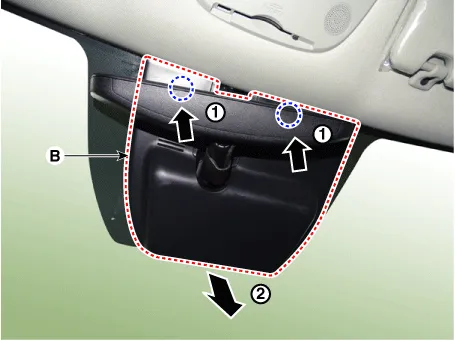

Remove the multifunction sensor cover (A), (B).
|
| 2. |
Disconnect the ECM mirror connector (A).
|
| 3. |

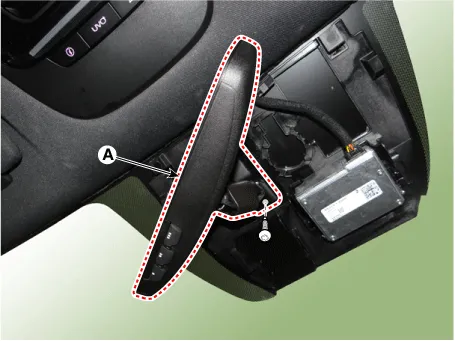

Loosen the mounted screws and push the ECM mirror base upward to remove the ECM mirror assembly (A).
|
| 4. |
To install, reverse the removal procedure.
|
Components and components location Component Location 1. Outside rear view mirror Repair procedures Replacement Put on gloves to prevent hand injuries.
Components and components location Component Location 1. Cowl top cover Repair procedures Replacement • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Schematic diagrams Connector and Terminal Function Pin Function Connector A Connector B Connector C Connector D 1 - Front washer switch (Output) - Driver outside handle switch (Input)
Description and operation Description The photo sensor is located at the center of the defrost nozzles. The photo sensor contains a photovoltaic (sensitive to sunlight) diode. The solar radiation received by its light receiving portion, generates an electromotive force in proportion to the amount of radiation received which is
