Light bulb position (Rear)

■ Rear combination lamp - Type A

■ Rear combination lamp - Type B

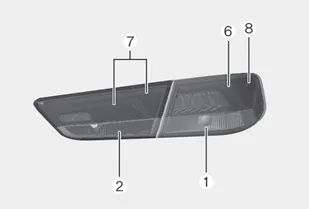

■ Rear combination lamp - Type C

■ License plate lamp

■ High mounted stop lamp

(1) Rear turn signal lamp (bulb type)
(2) Back-up lamp (bulb type)
(3) Stop and tail lamp (bulb type)
(4) Tail lamp (bulb type)
(5) Side marker (bulb type)
(6) Stop and tail lamp (LED type)
(7) Stop and tail lamp (LED type)
(8) Side marker (LED type)
(9) License plate lamp (bulb type)
(10) High mounted stop lamp (LED type)

Light bulb position (Side)

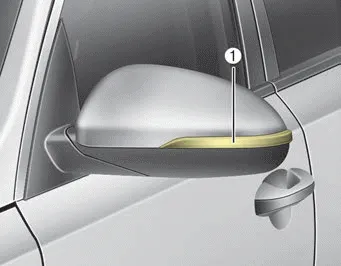

(1) Side repeater lamp (LED type)

    ■ Head lamp ■ Front turn signal lamp (Head lamp) ■ Front fog lamp (1) Front turn signal lamp (bulb type) (2) Headlamp (Low) (bulb type) (3) Headlamp (High) (bulb type) (4) Day time running lamp/ Position lamp (LED type) (5) Side marker (LED type) (6) Front fog lamp (bulb type)

    1. Open the hood. 2. Remove the headlamp bulb cover by turning it counterclockwise. 3. Remove the bulb-socket from the headlamp assembly by turning the bulb-socket counterclockwise until the tabs on the bulb-socket align with the slots on the headlamp assembly.
