Kia Optima DL3: Panorama Sunroof / Movable Glass
Repair procedures
| Replacement |
| 1. |
Open movable glass completely pressing panorama sunroof switch. |
| 2. |
Remove the slide folding cover (A).
|
| 3. |
Close movable glass completely pressing panorama sunroof switch . |
| 4. |

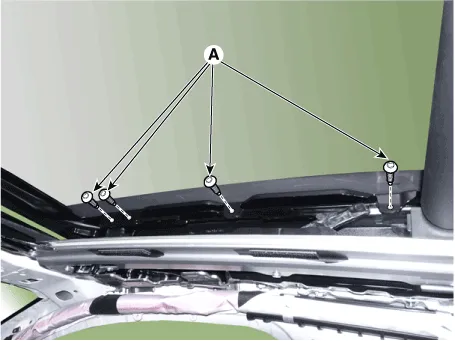

Loosen screws mounted on the glass using star wrench (T25) then remove movable glass (A).
|
| 5. |
Install in the reverse order of removal.
|
Components and components location Component 1. Panorama sunroof deflector 2. Movable glass 3. Rear glass 4.

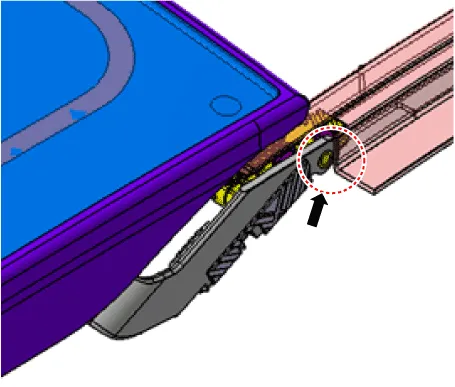

Repair procedures Removal • In order to remove the front glass, use the tools shown in the following figure: [Tooling Diagram] ① Square wire ② Insert-type wire grip • Insert and affix square wire ① into the insert hole of the wire grip ②.
