Kia Optima DL3: Panorama Sunroof / Roller Blind
Repair procedures
| Replacement |
| 1. |
Remove the roof trim. (Refer to Roof Trim - "Roof Trim Assembly") |
| 2. |
Open the roller blind using the panorama sunroof switch.
|
| 3. |

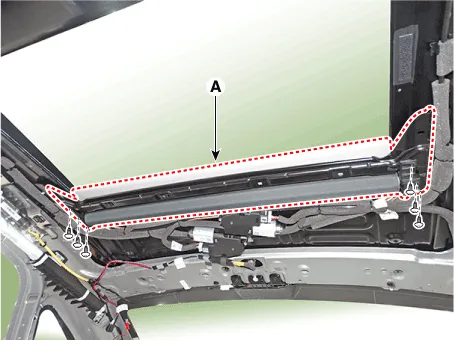

Remove the roller blind lower support (A) by loosening the mounting screws.
|
| 4. |

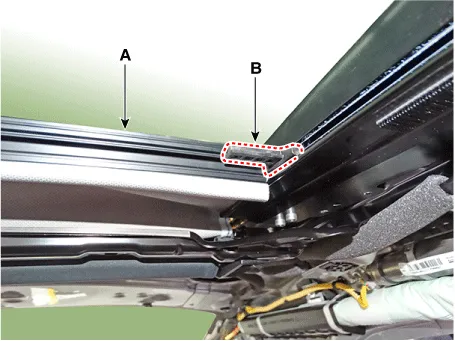

Using the screwdriver or removal, remove the roll blind (A) by pushing the lock pin (B) upside of blind.
|
| 5. |
To install, reverse the removal procedure. |
