Kia Optima DL3: Panorama Sunroof / Mechanism Rail
Repair procedures
| Replacement |
| 1. |
Remove the roof trim. |
| 2. |
Remove the movable glass. (Refer to Panorama sunroof - "Movable Glass") |
| 3. |
Remove the roller blind. (Refer to Panorama sunroof - "Roller Blind") |
| 4. |

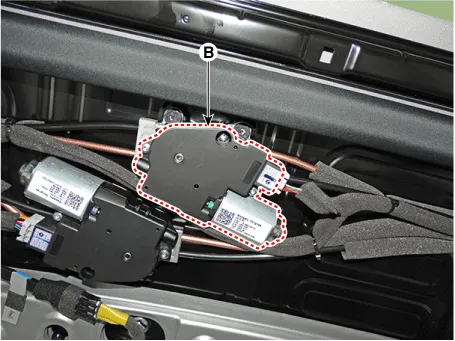

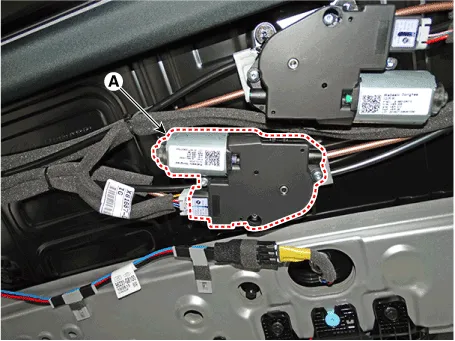

Loosen the mounting screws and remove the movable glass motor (A) roller blind motor (B).
|
| 5. |

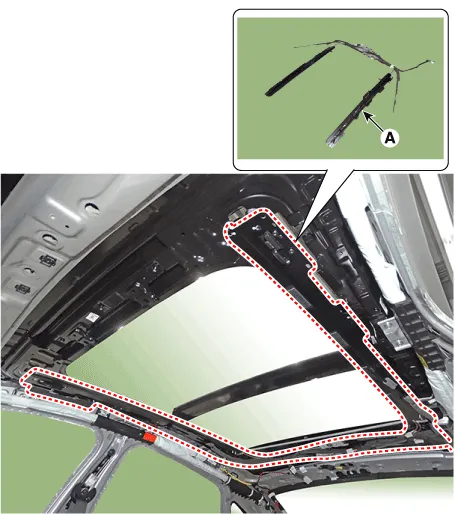

Loosen the mounting screws, nuts and remove the mechanism rail assembly (A).
|
| 6. |
To install, reverse the removal procedure. |
