Repair procedures

Replacement


Put on gloves to protect your hands.


•

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
•

Take care not to bend or scratch the trim and panels.

•

Remove the side seal moulding with the front and rear door full open.
1.

Remove the trunk lid trim.

(Refer to Trunk Lid - "Trunk Lid Trim")

2.

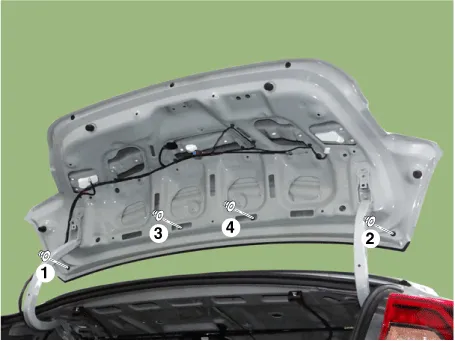

Loosen the trunk lid garnish mounting nuts.

Tightening torque :

5.9 - 6.4 N·m (0.6 - 0.65 kgf·m, 4.3 - 4.7 lb·ft, 52.1 - 56.4 lb·in)

3.

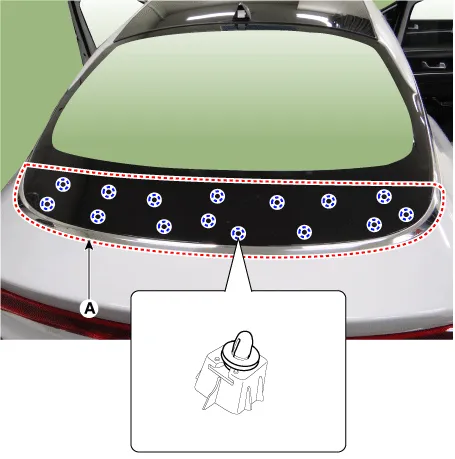

Using a screwdriver or remover, remove the trunk lid garnish (A).
4.

Install in the reverse order of removal.



Replace any damaged clips.
