Kia Optima DL3: Trunk Lid / Trunk Lid Trim

Kia Optima DL3 2019-2026 Service and Repair Manual / Body (Interior and Exterior) / Trunk Lid / Trunk Lid Trim

Components and components location

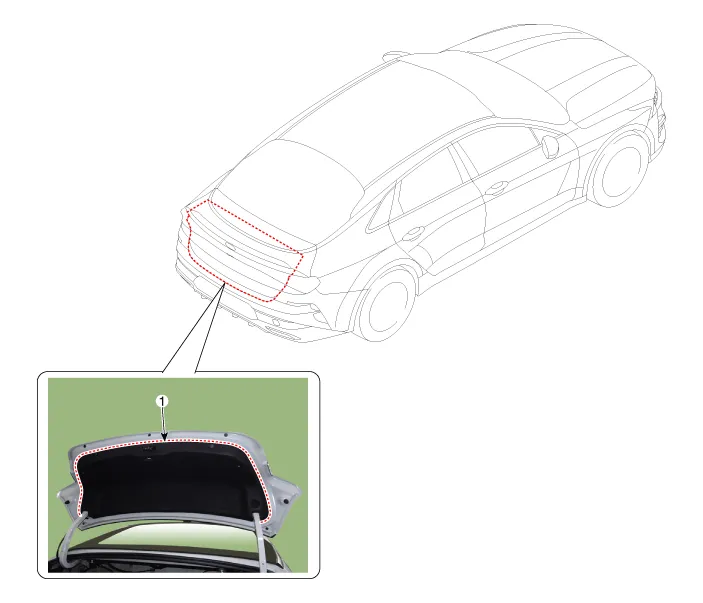

Component Location

1. Trunk lid trim

Repair procedures

Replacement

•	When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	Put on gloves to prevent hand injuries.

1.	Loosen the mounting clips and remove the trunk lid side cover (A).

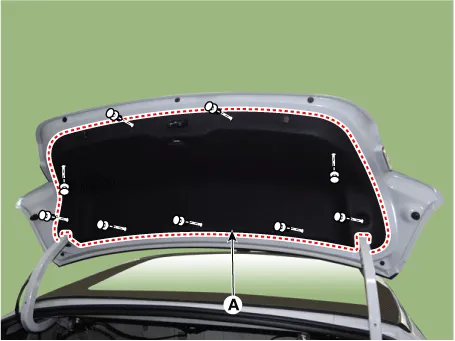

2.	Loosen the mounting clips and remove the trunk lid trim (A).

To install, reverse the removal procedure.

Replace any damaged clips.

❮Trunk Lid Assembly

Components and components location Component Location 1. Trunk lid assembly Repair procedures Replacement Wear gloves to protect hands from injury.

Trunk Lid Weatherstrip❯

Repair procedures SReplacement 1. Remove the trunk lid weatherstrip (A). Do not apply sealant to the body.
