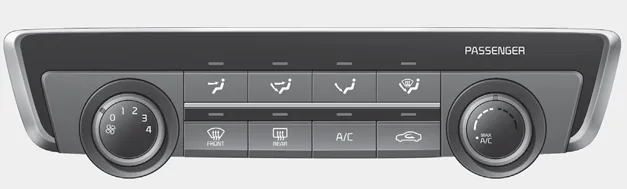

Kia Optima DL3: Features of your vehicle / Manual climate control system
1. Fan speed control knob
2. Front windshield defroster button
3. Rear window defroster button
4. Air conditioning button
5. Air intake control button
6. Mode selection buttons
7. Temperature control button
✽ NOTICE
Operating the blower when the ignition switch is in the ON position could cause the battery to discharge. Operate the blower when the engine is running.
- Heating and air conditioning
- System operation
- Climate control air filter
- Checking the amount of air conditioner refrigerant and compressor lubricant
CAUTION - Conductors To prevent damage to the conductors bonded to the inside surface of the rear window, never use sharp instruments or window cleaners containing abrasives to clean the window.
1. Start the engine. 2. Set the mode to the desired position. For improving the effectiveness of heating and cooling; - Heating: - Cooling: 3.
