Kia Optima: Panorama Sunroof / Panorama Sunroof Switch

Kia Optima DL3 2019-2025 Service and Repair Manual / Body Electrical System / Panorama Sunroof / Panorama Sunroof Switch

Schematic diagrams

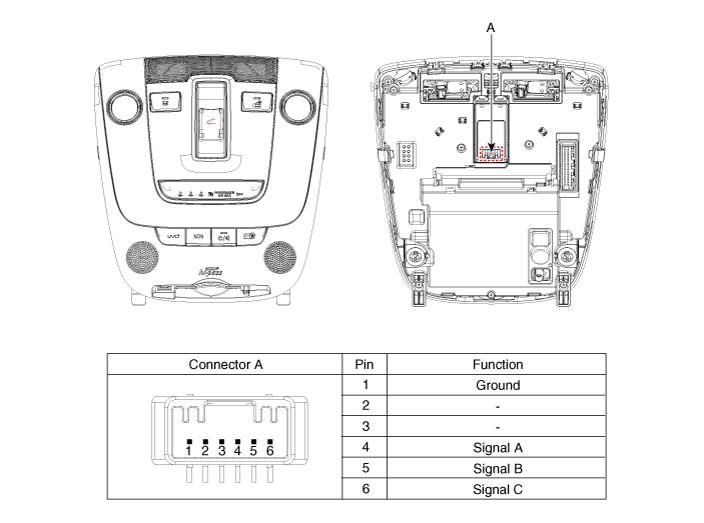

Connector and Terminal Function

Repair procedures

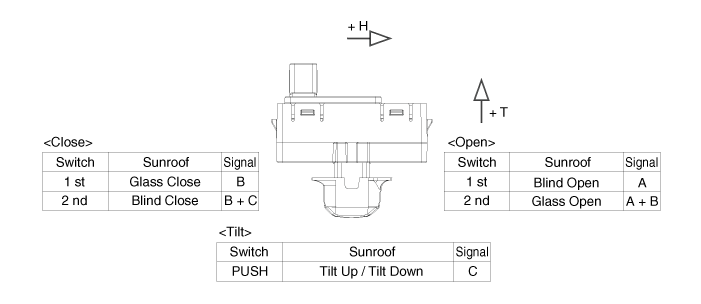

Inspection
1.

Remove the overhead console lamp.

(Refer to Lighting System - "Overhead Console Lamp")

2.

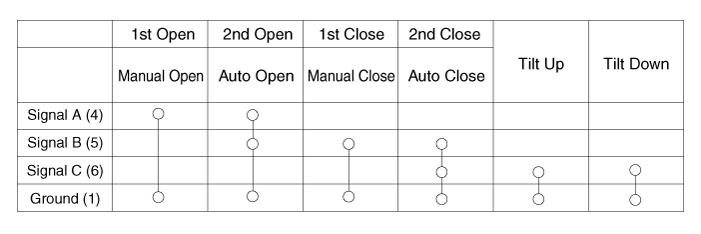

Check for continuity between the terminals in each switch position according to the table.

Replacement
1.

If the sunroof switch needs to be replaced, replace the overhead console lamp assembly.

(Refer to Lighting System - "Overhead Console Lamp")

Panorama Sunroof
Components and components location Component Location 1. Panorama sunroof assembly 2. Panorama sunroof switch 3. Glass motor 4. Blind motor ...

Panorama Sunroof Motor
Schematic diagrams Connector and Terminal Function Repair procedures Inspection 1. Disconnect the negative battery terminal. 2. Re ...
