Kia Optima: Lighting System / Personal Lamp

Removal

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

1.	Disconnect the negative battery terminal.

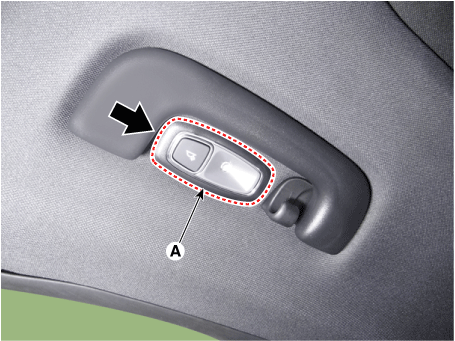

2.	Remove the personal lamp (A) by using a flat-tip screwdriver or remover.

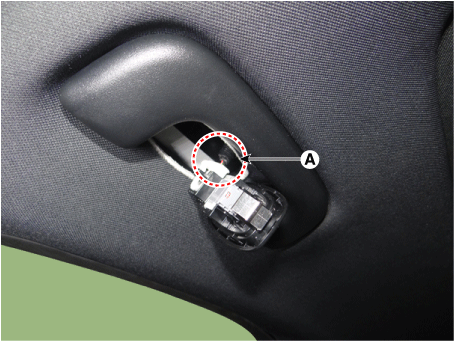

3.	Disconnect the personal lamp connector (A).

Installation

1.	Install in the reverse order of removal.
