Kia Optima DL3: Restraint / SRSCM

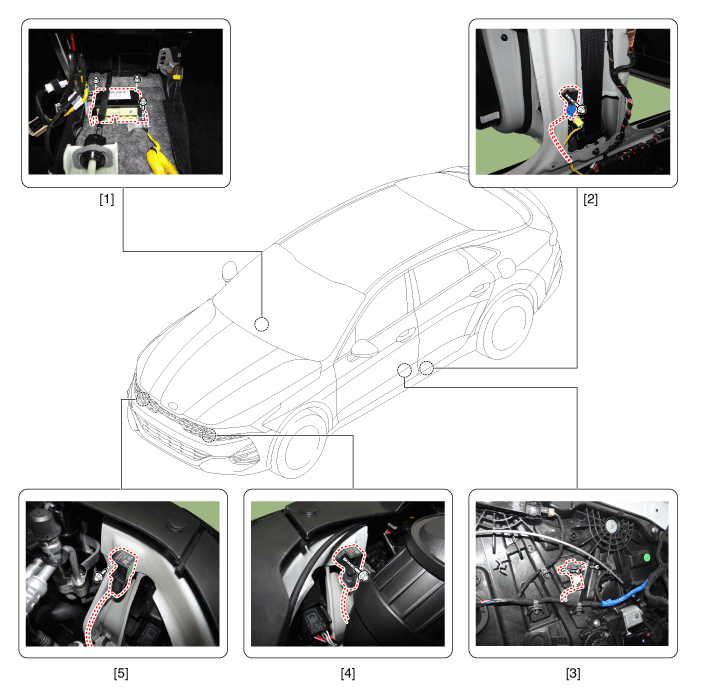

Components and components location
| Components |
| 1. Supplemental Restraint System
Control Module (SRSCM) 2. Gravity Side Impact Sensor (G-SIS) 3. Front Impact Sensor (FIS) |
4. Front Impact Sensor (FIS)
5. Pressure Side Impact Sensor (P-SIS) |
General information General The supplemental restraint system (SRS) is designed to supplement the seat belt to help reduce the risk or severity of injury to the driver and passenger by activating and deploying the driver, passenger, side airbag and seat belt pretensioner in certain frontal or side collisions.
Description and operation Description The primary purpose of the SRSCM (Supplemental Restraints System Control Module) is to discriminate between an event that warrants restraint system deployment and an event that does not.
