Kia Optima: Advanced Driver Assistance System (ADAS) / Front View Camera System
Components and components location

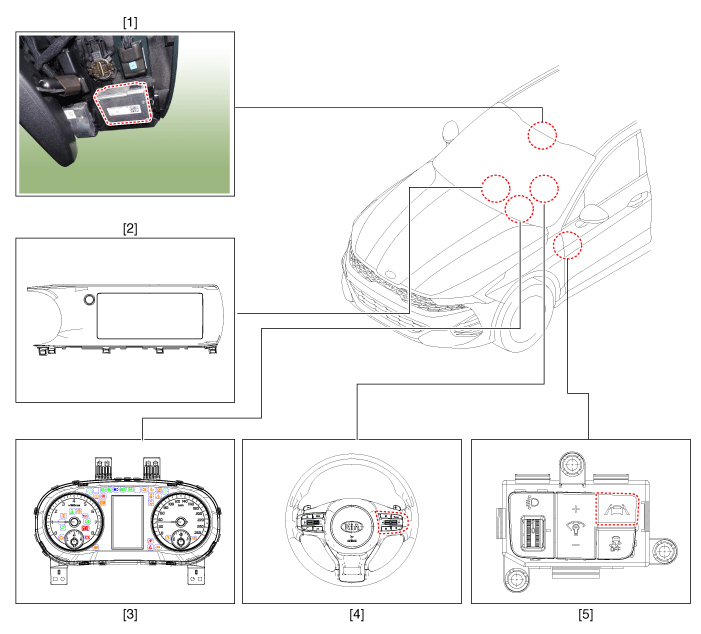

| Components Location |
| 1. Front view camera 2. AVN Head unit 3. Cluster |
4. LFA,SCC ON/OFF switch (Remote
control switch) 5. LKA ON/OFF switch |
Description and operation
| Description |
System Function
| • |
Forward Collision-avoidance Assist (FCA) : Detects the risk factors on the road and warns the driver and activates the emergency brake system to prevent collision or to reduce collision speed. FCA-JT (Junction Turning) : Controls braking in the event of a collision risk with an approaching vehicle from opposite sides in an junction left turn. |
| • |
Lane Keeping Assist (LKA) : Detects unintentional lane departure and assists the driver to stay in the lane by using audible alarms and MDPS steering control. |
| • |
Driver Attention Warning (DAW) : The system analysis driving patterns and displays message in cluster along with audible alarm. |
| • |
High Beam Assist (HBA) : Detects head lamp and tail lamp lights of the vehicle ahead and turns the high beams ON/OFF. |
| • |
Lane Following Assist (LFA) : This system is designed to improve passenger convenience by controlling the steering wheel to keep the vehicle at the center of the lane, helping to reduce operating load while driving. |
| System Description |
Forward Collision-avoidance Assist (FCA)
| 1. |
Operation specification
|
||||||||||||||||||||||||||||||||||||||||||||||||||
| 2. |
System components
|
| 3. |

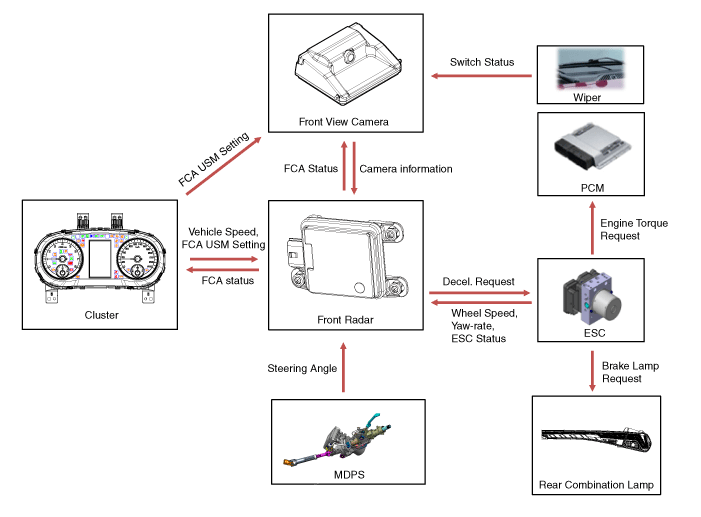

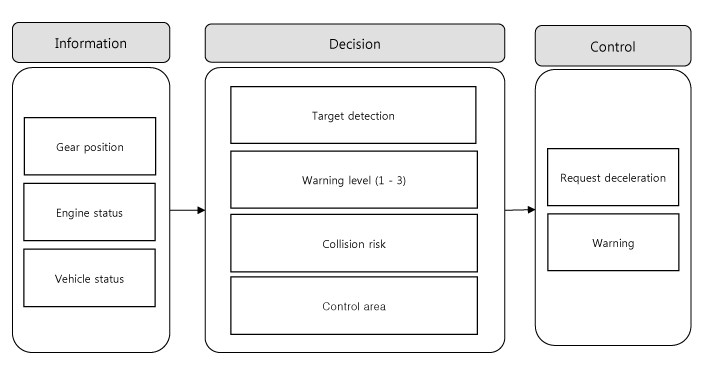

System block diagram
|
| 4. |

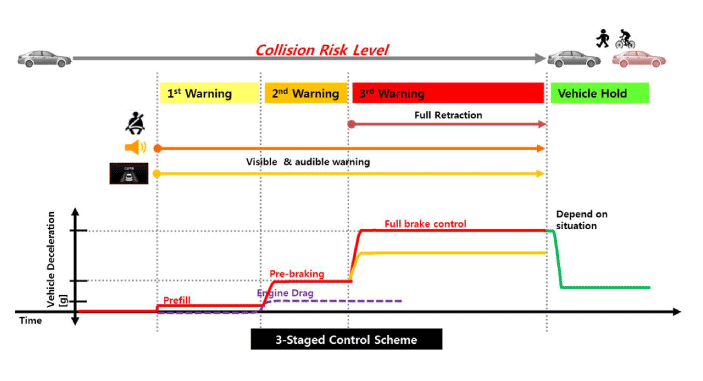

System operation
|
Lane Keeping Assist (LKA)
| 1. |
Operation specification
|
||||||||||||||||||||||
| 2. |
System components
|
| 3. |

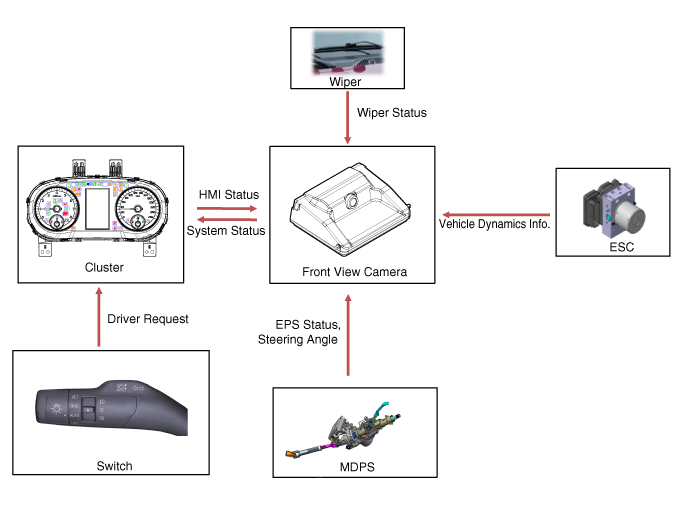

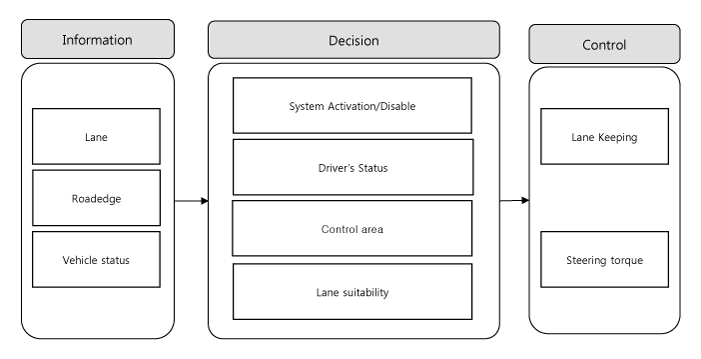

System block diagram
|
Driver Attention Warning (DAW)
| 1. |
Operation specification
|
|||||||||||||||||
| 2. |
System components
|
| 3. |

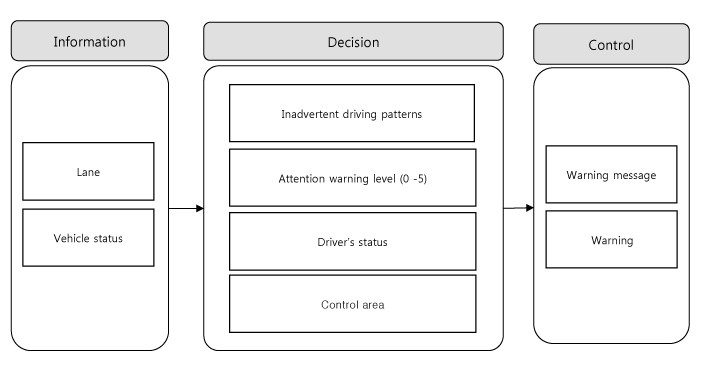

System block diagram
|
High Beam Assist (HBA)
| 1. |
Operation specification
|
|||||||||||||
| 2. |
System components
|
| 3. |

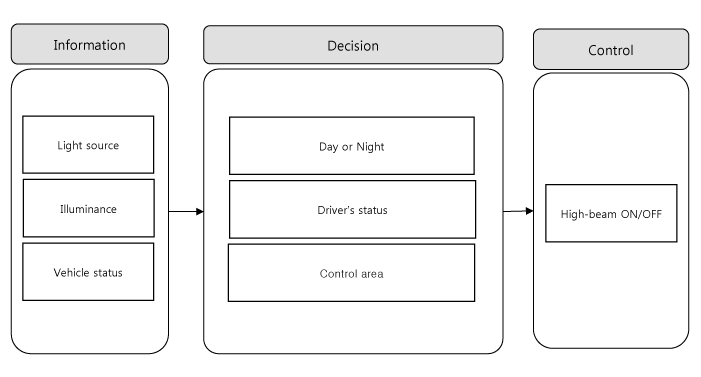

System block diagram
|
Lane Following Assist (LFA)
| 1. |
Operation specification
|
|||||||||||||
| 2. |
System components
|
| 3. |

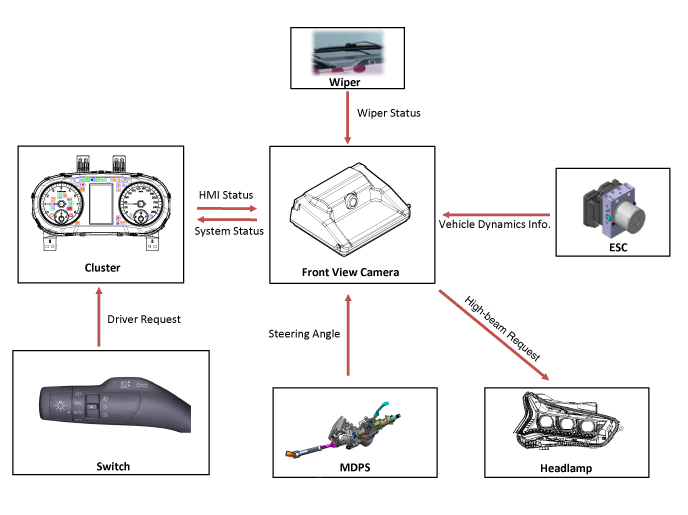

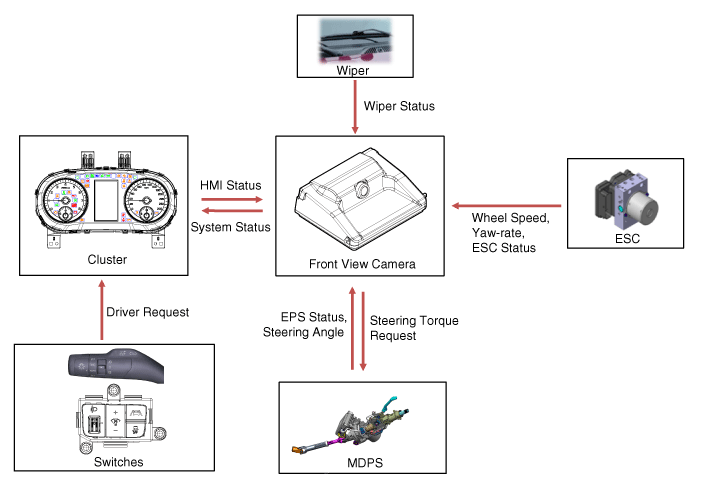

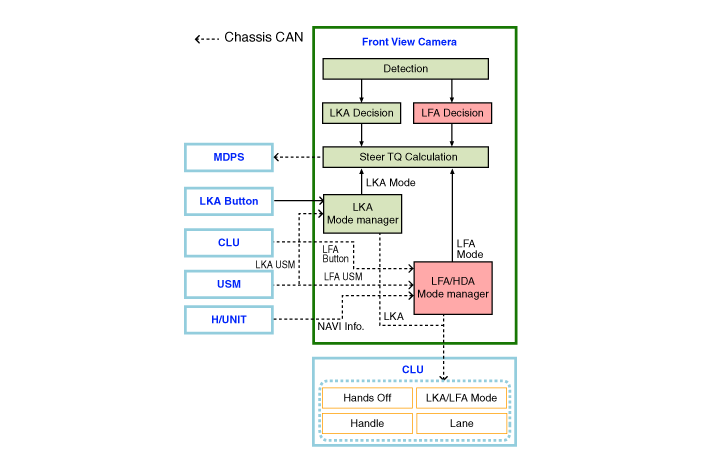

System block diagram
|
| System Limitations |
This system monitors the driving situations through the radar and the camera. Thus, for a situation out of the sensing range, the system may not operate normally.
The System may be limited when :
| • |
The camera is restricted with a foreign object or debris. |
| • |
The camera lens is contaminated due to tinted filmed or coated windshield, damaged glass, or stuck with foreign matter (sticker, bug, etc.) on the glass. |
| • |
Inclement weather such as heavy rain or snow obscures the field of view of the camera. |
| • |
The target in front is too small to be detected |
| • |
The vehicle in front is an oversize vehicle or trailer that is too big to be detected by the camera recognition system (for example a tractor trailer, etc.). |
| • |
The camera's field of view is not well illuminated (either too dark or too much reflection or too much backlight that obscures the field of view) |
| • |
The vehicle in front does not have their rear lights ON or their rear lights are located in an unsual location (modified). |
| • |
The windshield glass is fogged up and the clear view of the road has been obstructed. |
| • |
The camera is damaged. |
Advanced Driver Assistance System (ADAS)
Special service tools
Special Service Tools
Tool Name / Number
Illustration
Description
LKA Compensator
(09890-3V100)
...
Front View Camera Unit
Schematic diagrams
Circuit Diagram
Repair procedures
Inspection
1.
In the body electrical system, failure can be quickly diagnosed by using
Kia Diagno ...
