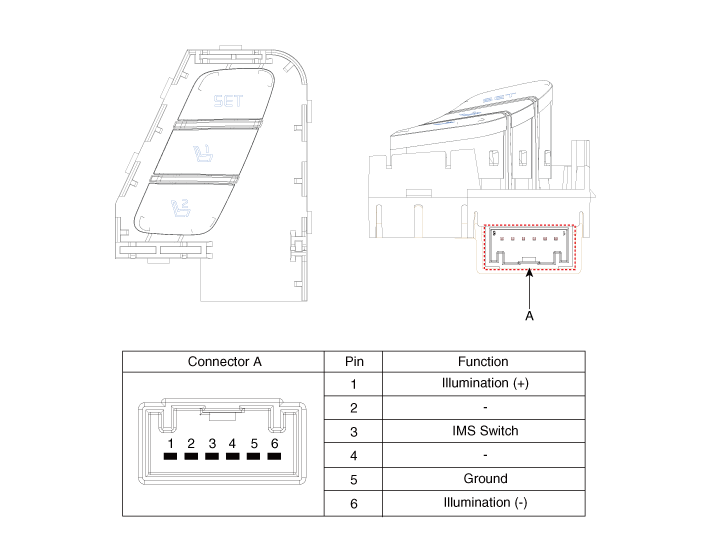

Connector and Terminal Function

Repair procedures
Removal


When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

1.

Disconnect the negative battery terminal.

2.

Remove the front driver door trim.

(Refer to Body - "Front Door Trim")

3.

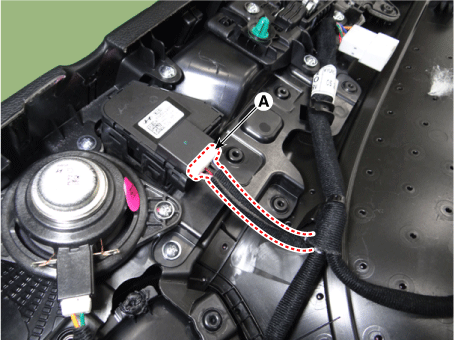

Disconnect the IMS switch connector (A).

4.

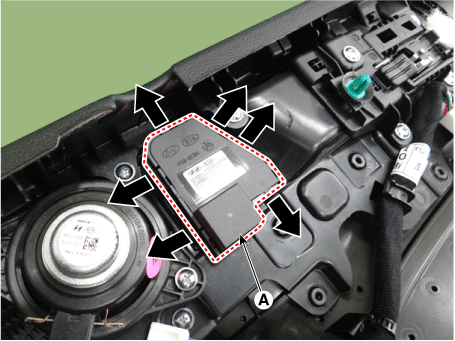

Remove the IMS switch (A) by pushing the hooks in the direction of arrow.

Installation
1.

Install in the reverse order of removal.

Inspection
1.

Disconnect the negative battery terminal.

2.

Remove the front driver door trim.

(Refer to Body - "Front Door Trim")

3.

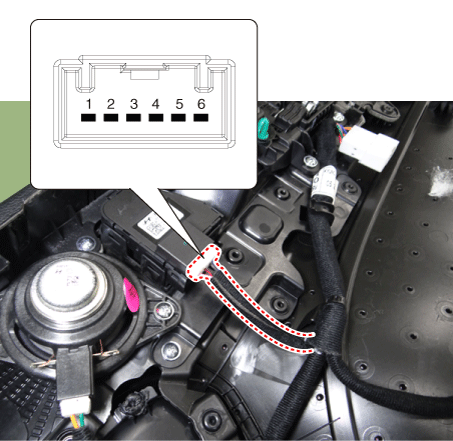

Disconnect the IMS switch connector (A).

4.

When each switch is pressed, check the electricity flow between integrated memory seat switch connector and ground.

Switch
Connector Terminal
Resistance (±1%)
SET
3-5
680 Ω
Memory 1
1.5 kΩ
Memory 2
3.3 kΩ
