| Cleaning |
| 1. |
Remove the climate control air filter. |
| 2. |
Check that the climate control air filter is not excessively dirty.
|
| 3. |

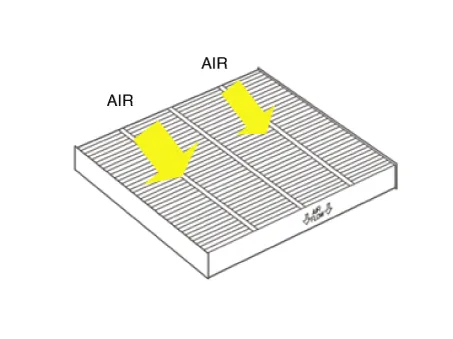

If cleaning the climate control air filter, blow compressed air as shown in the illustration to clean it.
|
| Replacement |
|
| 1. |

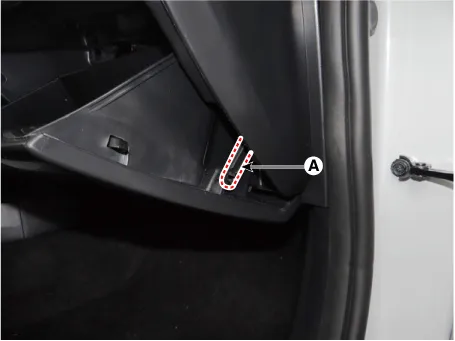

Open the glove box and separate the air damper (A) from the glove box.
|
| 2. |

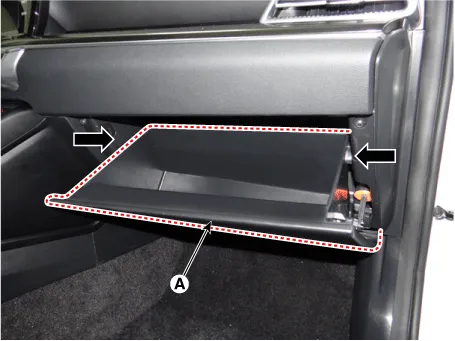

Press both sides inwards to open the glove box (A) downwards.
|
| 3. |

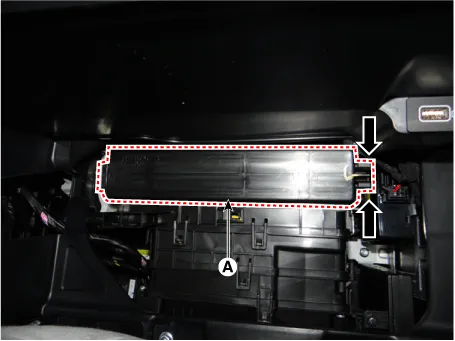

Remove the filter cover (A) by pressing the knob.
|
| 4. |

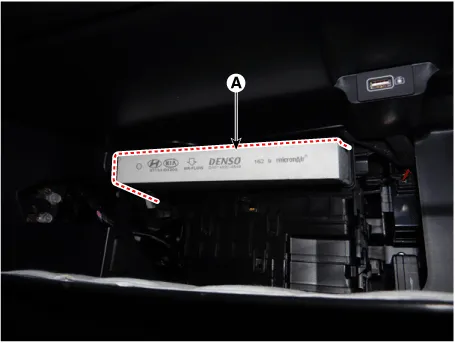

Replace the air filter (A) with a new one according to the direction of air filter.
|
| 5. |
To install, reverse the removal procedure.
|
