Kia Optima DL3: Lighting System / License Lamps

Repair procedures

Removal

1.	Disconnect the negative battery terminal.

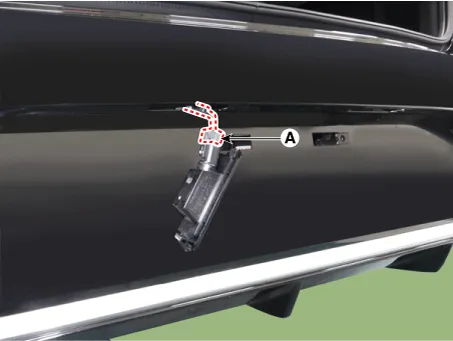

2.	Remove the lcense lamp (A) by pressing the hook.

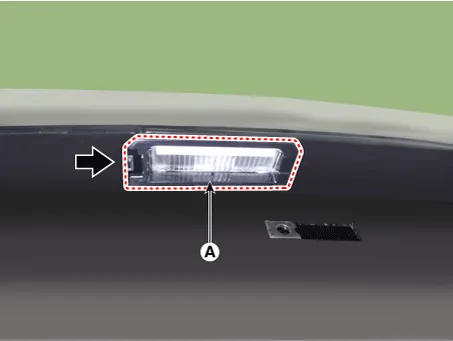

3.	Disconnect the lcense lamp connector (A).

Installation

1.	Install in the reverse order of removal.

Replacement

[Bulb]

1.	Remove the lcense lamp.

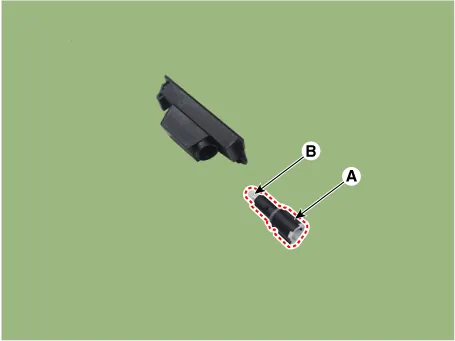

2.	Remove the socket (A) by rotating it in the counter-clockwise.

3.	Replace the bulb (B) by pulling it out from the socket.
