Kia Optima DL3: Audio/AVN System / External Amp

Kia Optima DL3 2019-2026 Service and Repair Manual / Body Electrical System / Audio/AVN System / External Amp

Components and components location

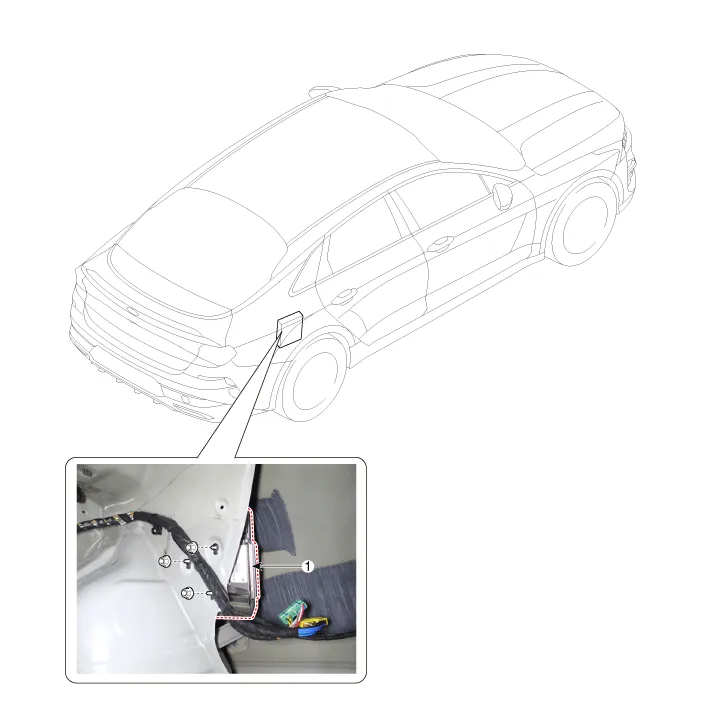

Component Location

1. External amp

Schematic diagrams

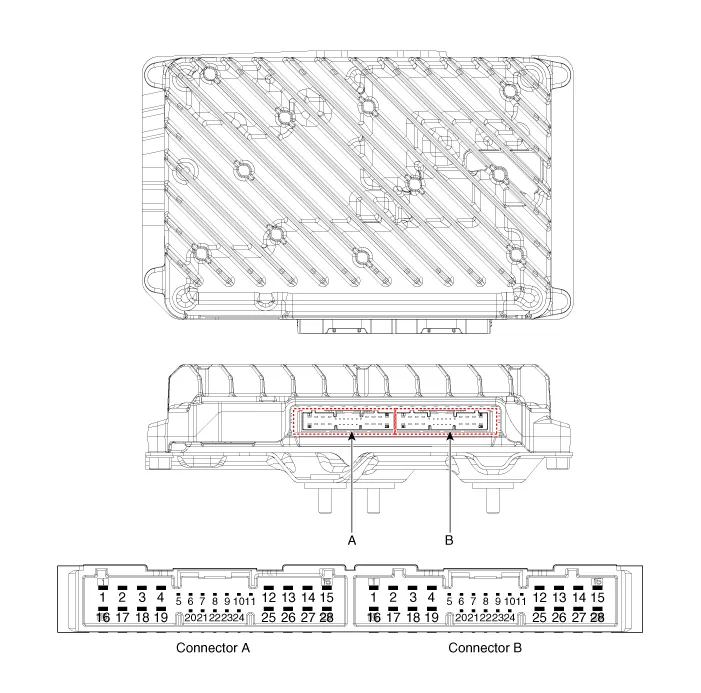

Connector and Terminal Function

Pin	Function
Pin	Connector A	Connector B
1	Battery (+)	Right front door tweeter speaker (+)
2	Battery (+)	Left front door tweeter speaker (+)
3	Battery (+)	Sub woofer speaker (+)
4	Battery (+)	-
5	-	-
6	MM-CAN (High)	-
7	MM-CAN (Low)	Amplifier navigation voice (+)
8	ACC	-
9	-	-
10	-	-
11	-	-
12	Right surround speaker (+)	Right rear door speaker (+)
13	Left surround speaker (+)	Left rear door speaker (+)
14	Right midrange speaker (+)	Center speaker(+)
15	Left midrange speaker (+)	-
16	Ground	Right front door tweeter speaker (-)
17	Ground	Left front door tweeter speaker (-)
18	Ground	Sub woofer speaker (-)
19	Ground	-
20	Amplifier SPDIF (High)	-
21	Amplifier SPDIF (Low)	Amplifier navigation voice (-)
22	Amplifier SPDIF (Ground)	-
23	-	-
24	IGN1	-
25	Right surround speaker (-)	Right rear door speaker (-)
26	Left surround speaker (-)	Left rear door speaker (-)
27	Right midrange speaker (-)	Center speaker (-)
28	Left midrange speaker (-)	-

Repair procedures

Inspection

•	Warning and guide sounds regarding engine start and driving are generated by the external amplifier.

•	When the external amplifier or speakers are replaced with other products, a failure may occur with the amplifier warning and guide sounds (excluding the ETCS guide sound) may not be generated.

•	Virtual engine sound inside the vehicle (occurs in Sport mode) is generated by the external amplifier. Therefore, if the external amplifier or speakers are replaced with other products, a failure may occur in the amplifier and virtual engine sound may not be generated properly.

In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (KDS).

1)	Self diagnosis : Checking failure and code number (DCT).

2)	Current data : Checking the system input/output data state.

3)	Actuation test : Checking the system operation condition.

4)	Additional function : Controlling other features including system option setting and zero point adjustment.

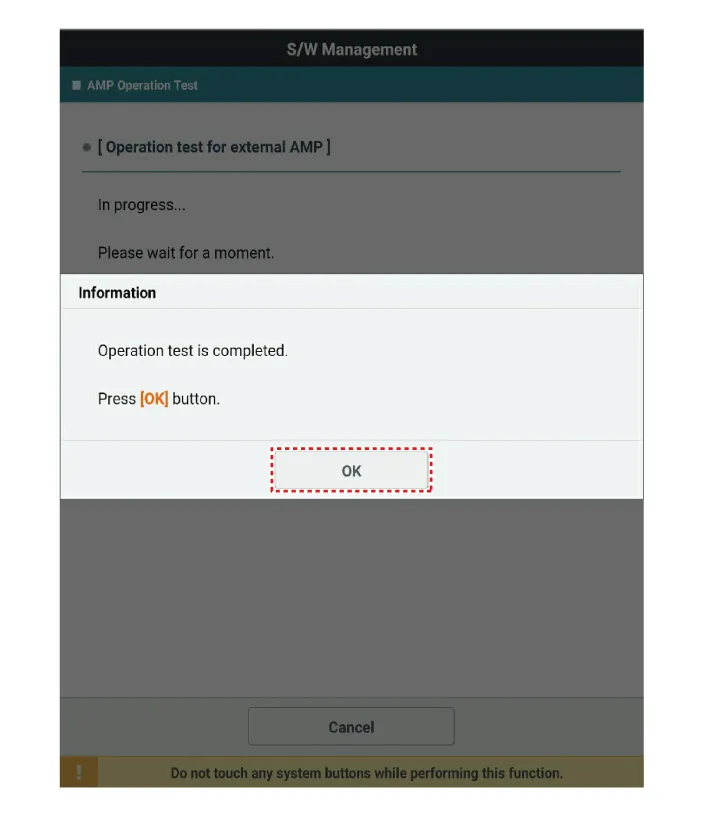

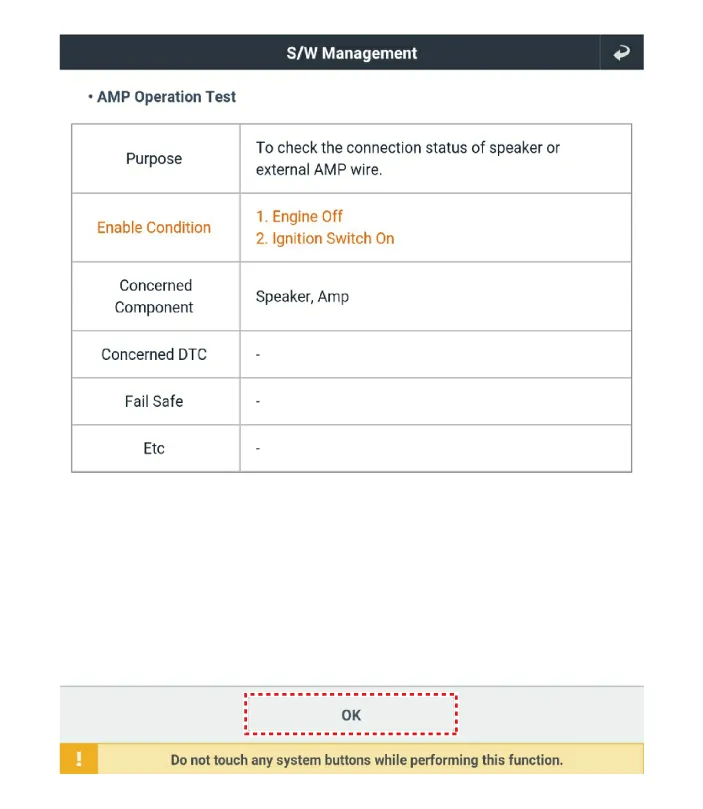

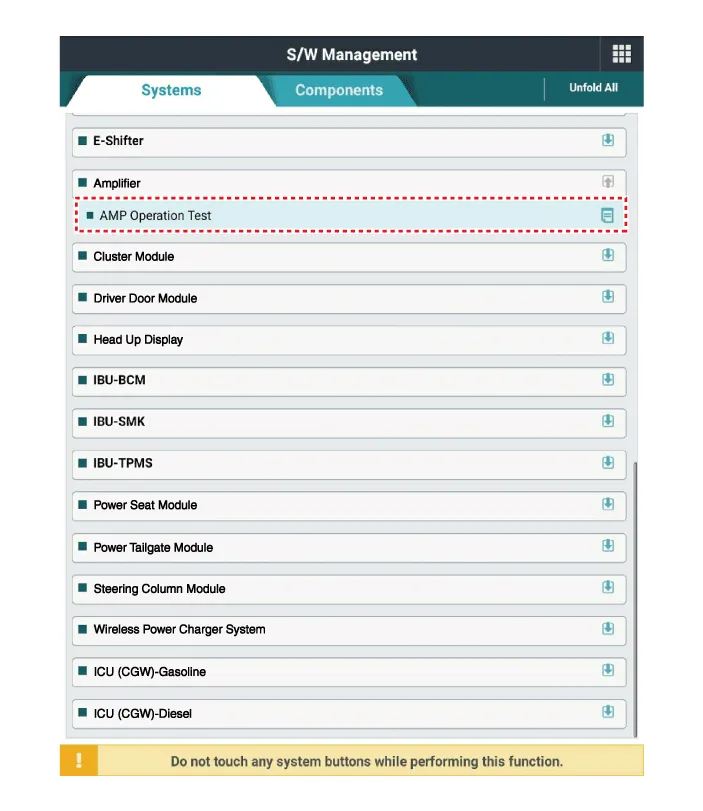

1.	Perform the AMP operation test using the KDS.

Removal

1.	Disconnect the negative battery terminal.

2.	Remove the right luggage side trim. (Refer to Body - "Luggage Side Trim")

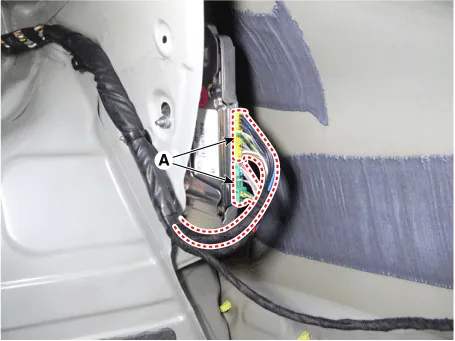

3.	Disconnect the external amp connectors (A).

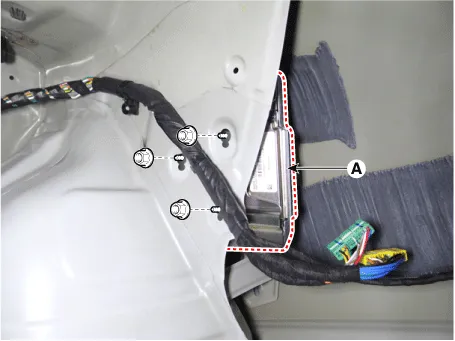

4.	Remove the external amp (A) by loosening the mounting nuts.

Installation

1.	Install in the reverse order of removal.
