| Removal |
| 1. |
Disconnect the (-) battery terminal. |
| 2. |
Remove the front wheel and tire. (Refer to Suspension System - "Wheel") |
| 3. |

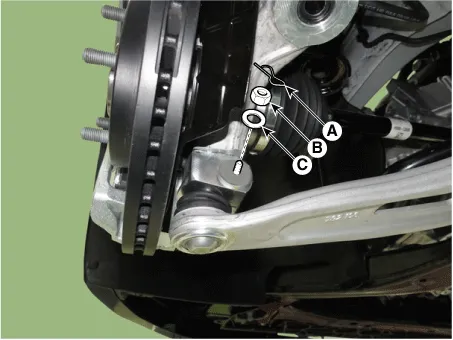

Loosen the lower arm mounting nut (A).
|
| 4. |

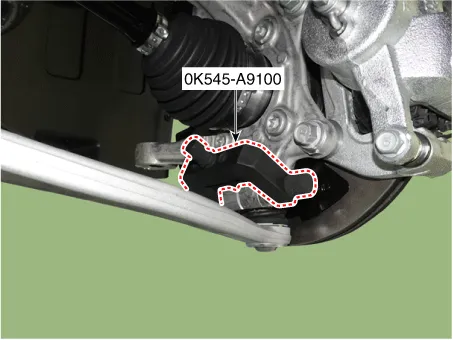

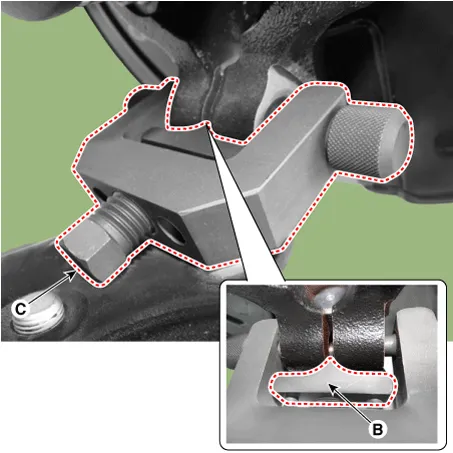

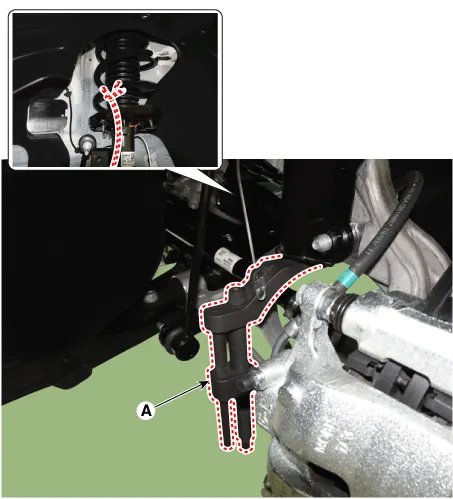

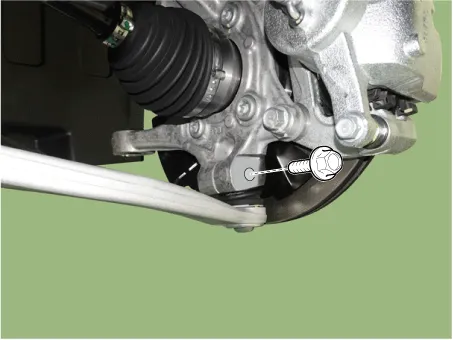

Disconnect lower arm ball joint from the knuckle by using the SST (0K545-A9100).
|
| 5. |

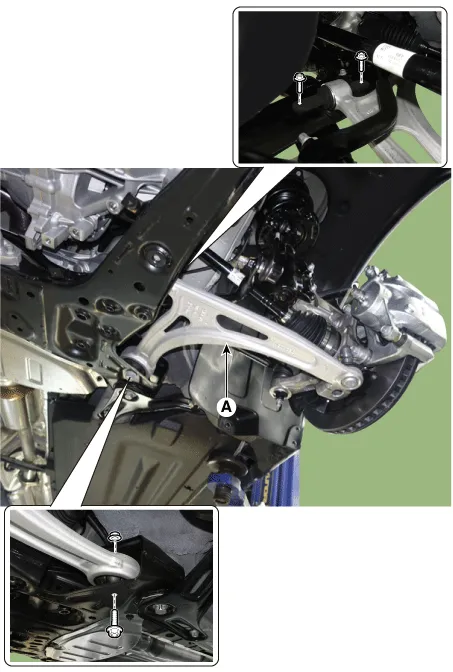

Loosen the bolts and nuts and remove the lower arm (A) from the sub frame.
|
| Installation |
| 1. |
Install in the reverse order of removal. |
| 2. |
Check the alignment. (Refer to Suspension System - "Alingment") |
| Inspection |
| 1. |
Check the bushing for wear and deterioration. |
| 2. |
Check the lower arm for bending or breakage. |
| 3. |
Check the lower arm for deformation. |
| 4. |
Check the all bolts and nuts. |
