Kia Optima DL3: Suspension System / Front Suspension System
Components and components location

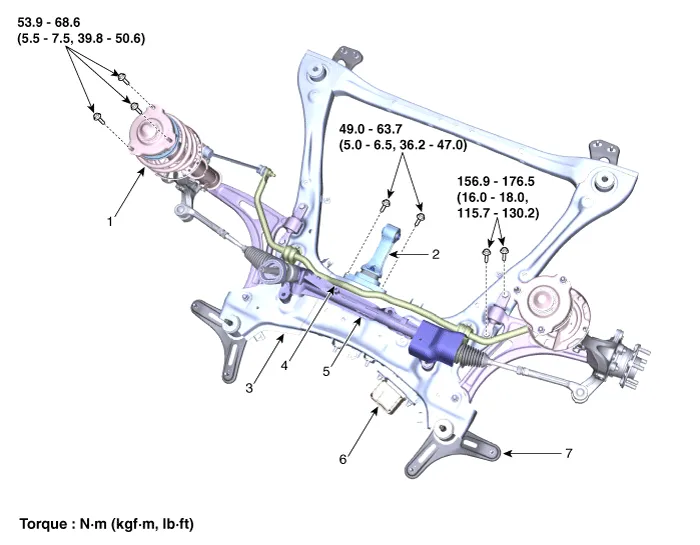

| Components |
| 1. Strut complete 2. Roll rod bracket 3. Sub frame 4. Stabilizer bar |
5. Steering gear box 6. Dynamic damper 7. Sub frame stay |
Service data Service Data Front Suspension Item Specification Suspension type Macpherson Strut Shock absorber type Gas Rear Suspension Item Specification Suspension type Multi link Shock absorber type Gas Wheel & Tire Item Specification Steel wheel 6.
Components and components location Components 1. Strut assembly 2. Insulator dust cap 3. Insulator 4. Spring upper pad 5.
