Kia Optima DL3: Automatic Transaxle System / Hydraulic System
Components and components location
| Components Location |
| 1. Automatic
transaxle 2. Oil filter 3. Mechanical oil pump |
4. Converter
housing 5. Torque converter |
Description and operation
| Description |
The components of the hydraulic system
| • |
Automatic Transaxle Fluid (ATF) |
| • |
Oil pump |
| • |
Oil filter |
| • |
Valve body |

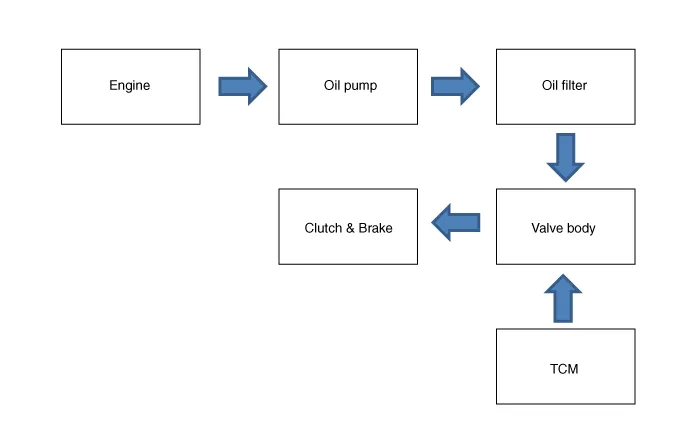

| Operation |
| 1. |
The oil pump is powered by the engine. |
| 2. |
ATF passes through the oil filter and gets distributed along the oil channels. |
| 3. |
TCM controls the hydraulic pressure using solenoid valves and controls clutch and brake operations.
|
Oil-pressure characteristics input
| Oil-pressure characteristics input |
| Solenoid valve oil-pressure characteristics input procedure |
| 1. |

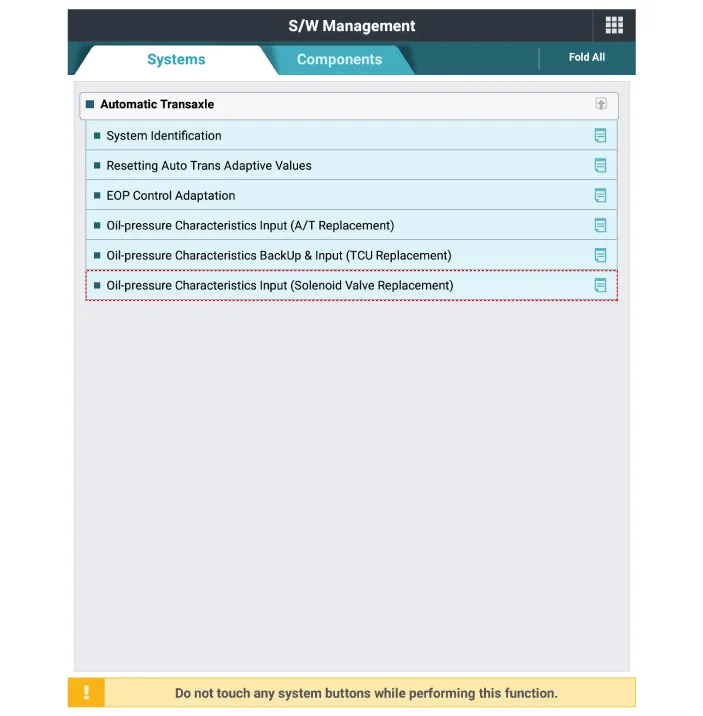

Perform the oil-pressure characteristics input procedure using the KDS.
|
| 2. |

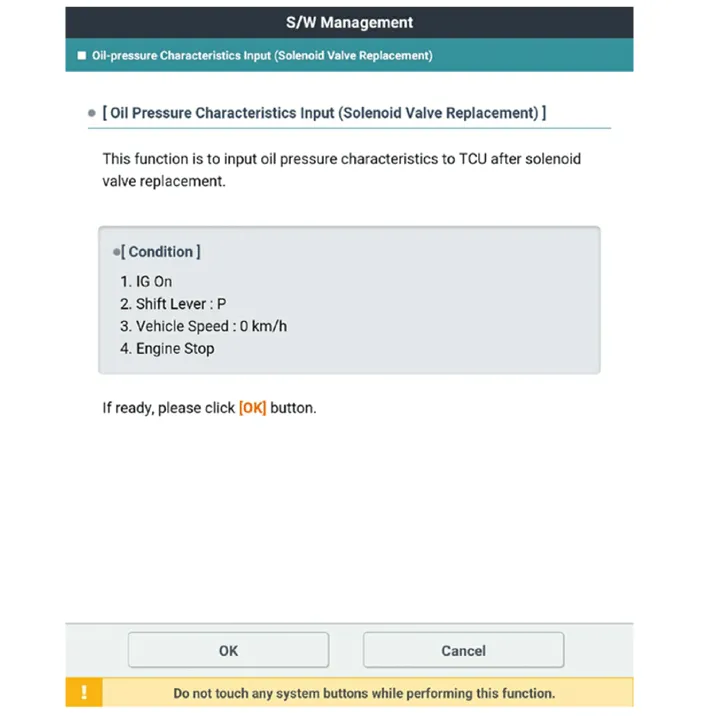

Click the "OK" button after checking the condition.
|
| 3. |

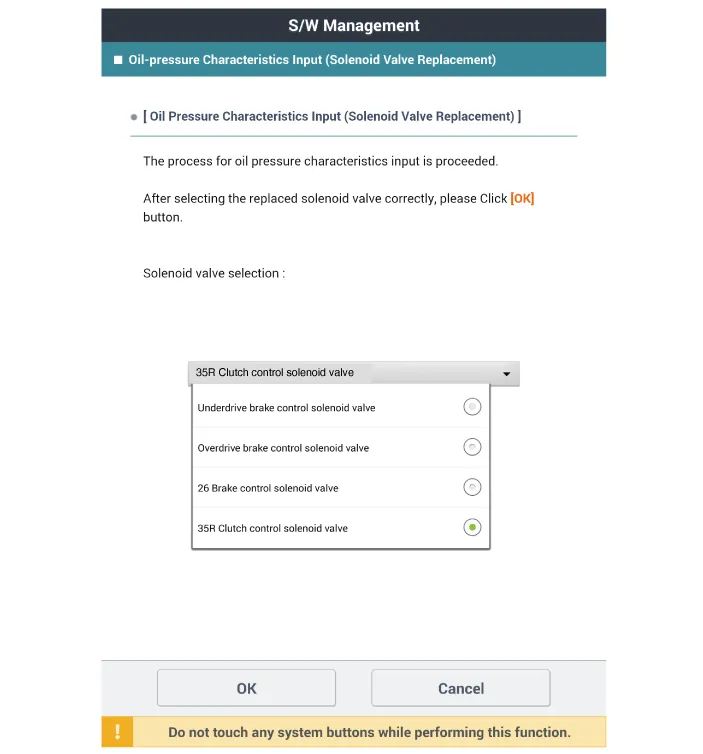

Click the "OK" button after selecting the replaced solenoid valve.
|
| 4. |
Check the code that was recorded before installing the new solenoid valve.
|
| 5. |
Click the "OK" button after inputting oil pressure characteristics for the replaced solenoid valve.
|
