Kia Optima DL3: Panorama Sunroof / Panorama Sunroof Deflector
Repair procedures
| Replacement |
| 1. |
Open movable glass completely pressing panorama sunroof switch. |
| 2. |

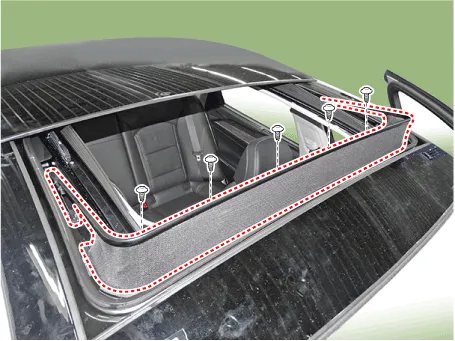

Loosen the mounting screws located at the side of the panorama sunroof deflector.
|
| 3. |

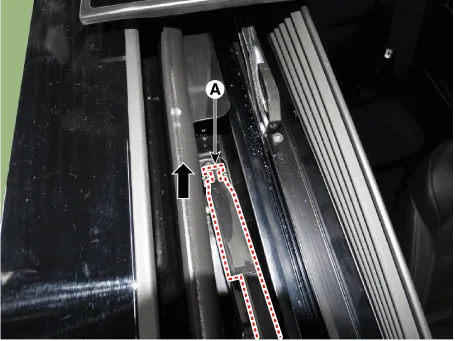

Remove the panoramic sunroof deflector fixing bracket (A) by pushing it upwards like an arrow.
|
| 4. |
To install, reverse the removal procedure. |
Repair procedures Removal • To remove the rear glass, use the tools shown in the following figure: [Tools Composition] ① Square wire ② Insert-type wire grip [Tool Assembly] • Insert and affix square wire ① into the insert hole of the wire grip ②.
Repair procedures Replacement 1. Remove the roof trim. 2. Remove the movable glass. (Refer to Panorama sunroof - "Movable Glass") 3.
