Kia Optima DL3: Lubrication System / Oil Pump
Repair procedures
| Removal and Installation |

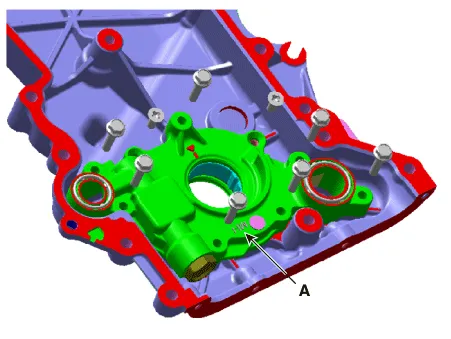

Do not disassemble the oil pump (A) from timing chain cover because it is supplied as timing chain cover & oil pump assembly.
|
Repair procedures Removal and Installation 1. Remove the oil level gauge (A). 2. Install in the reverse order of removal.
