Kia Optima DL3: Surround View Monitor (SVM) / Surround View Monitor (SVM) Camera

Kia Optima DL3 2019-2025 Service and Repair Manual / Advanced Driver Assistance System (ADAS) / Surround View Monitor (SVM) / Surround View Monitor (SVM) Camera

Schematic diagrams

Connector and Terminal function

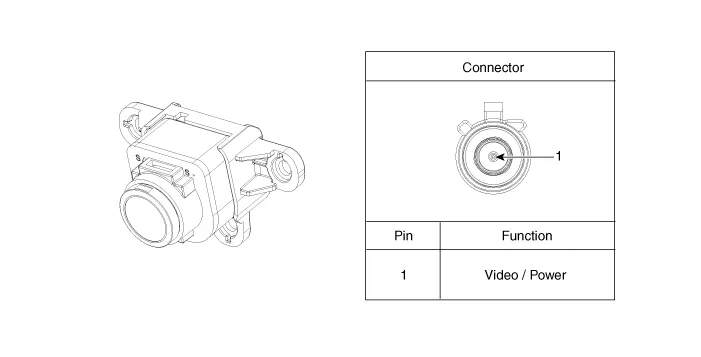

Front View Camera

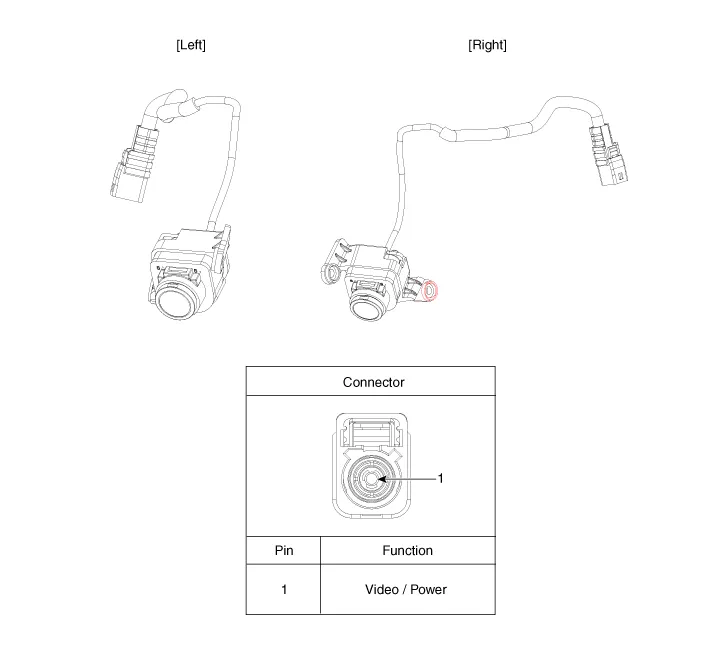

Side View Camera

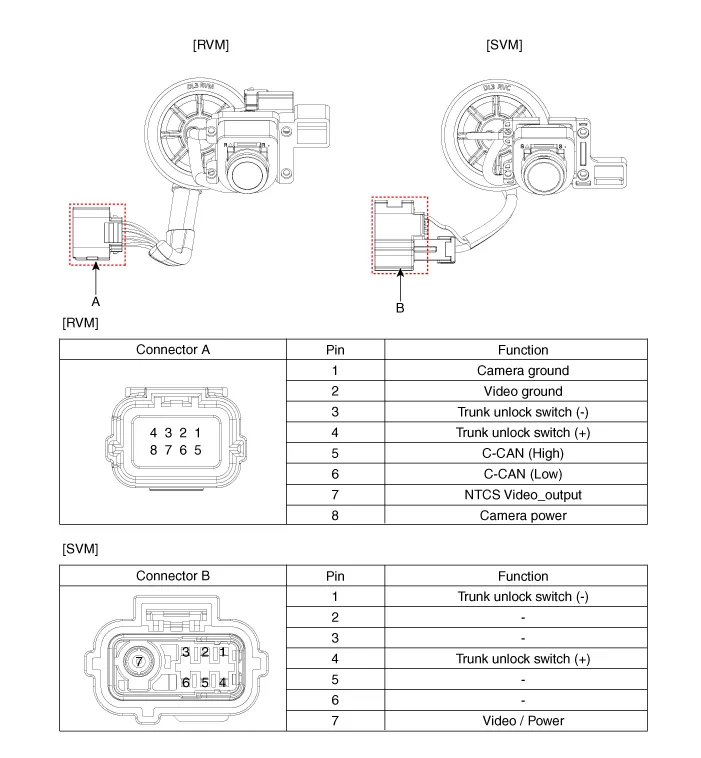

Rear View Camera

Repair procedures

Removal

In case of bad quality or poor focus, be sure to check the camera lens surface condition and foreign materials.

Front View Camera

1.	Disconnect the negative battery terminal.

2.	Remove the front bumper assembly. (Refer to Body - "Front Bumper Assembly")

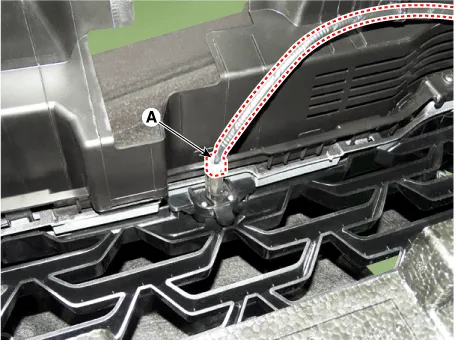

3.	Disconnect the front view camera connector (A).

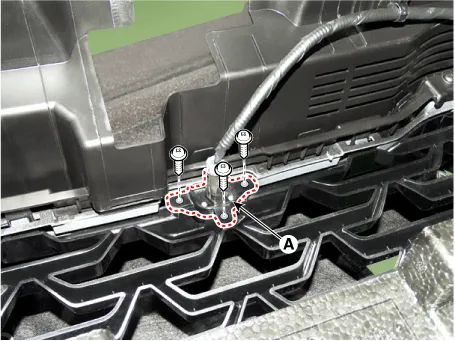

4.	Remove the front view camera (A) after loosening the mounting screws.

Side View Camera

1.	Disconnect the negative (-) battery terminal.

2.	Remove the outside rear view mirror scalp and housing cover. (Refer to Body - "Outside Rear View Mirror")

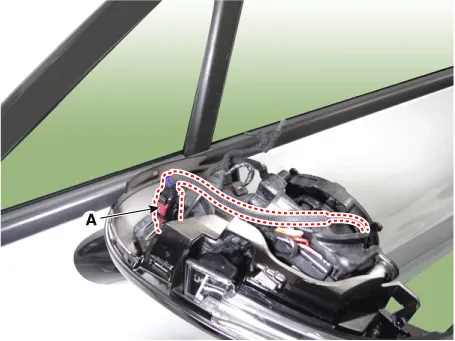

3.	Disconnect the side view camera connector (A).

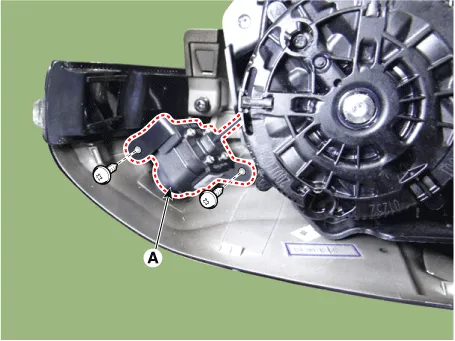

4.	Remove the side view camera (A) after loosening the screws.

Rear View Camera

1.	Disconnect the negative (-) battery terminal.

2.	Remove the center rear combination lamp. (Refer to Body Electrical System - "Rear Combination Lamp")

3.	Disconnect the trunk switch connector (A).

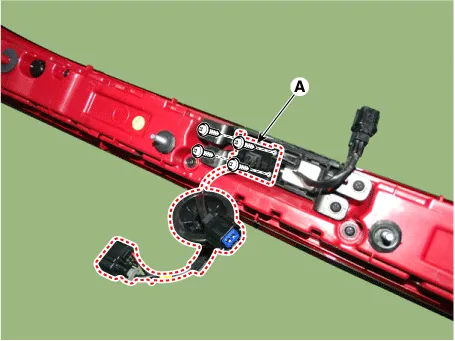

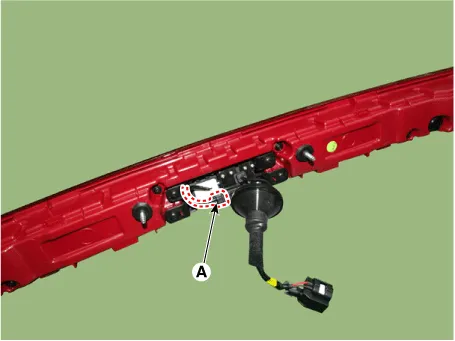

4.	Remove the rear view camera (A) after loosening the screws.

Installation

1.	Install in the reverse order of removal.
