Components and components location

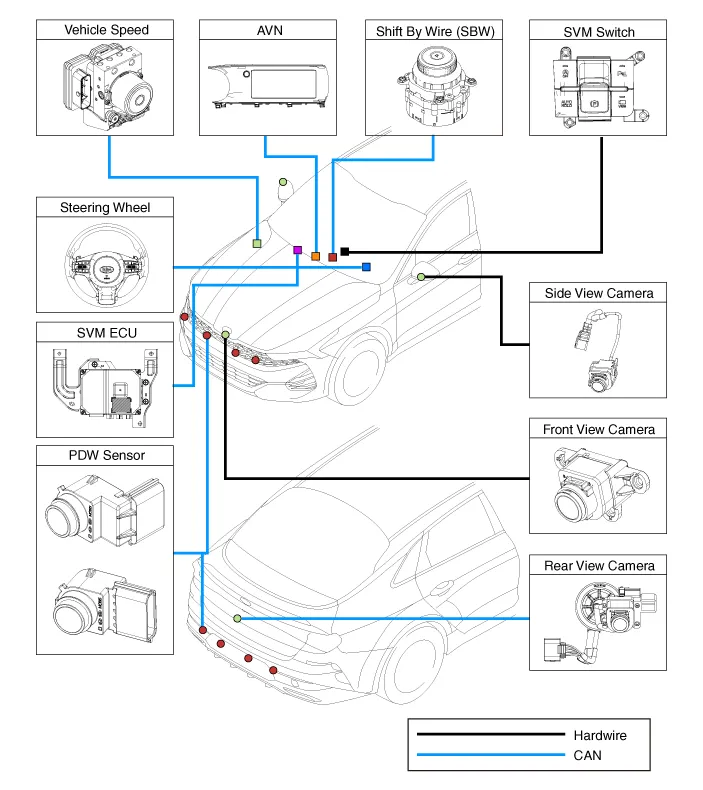

Component Location

Surround View Monitor (SVM)

1) SVM unit basically transmits data via C-CAN only.

•	Steering wheel angle sensor : C-CAN

•	Vehicle speed sensor : C-CAN

2) It functions as a CGW (Central gateway) of C-CAN ↔ B-CAN, P-CAN, MM-CAN in ICU.

e.g. The signal of unit using B-CAN, P-CAN, MM-CAN is transmitted after converting to C-CAN in cluster.

•	SVM monitor : MM-CAN

•	Transmission : P-CAN (TCU)

•	PDW sensor : B-CAN (IBU)

Component Functions

–	Steering Wheel Sensor : The steering wheel angle is transmitted to the SVM unit through the C-CAN communication line for display of the rear view and steering assisted parking guideline.

–	Transmission : The shift lever position is transmitted to the SVM to determine its operation.

–	Front/Rear PDW : An alarm screen to display obstacles appears on the omnidirectional monitor that receives data from the parking distance warning (PDW) sensor on the front and rear.

–	SVM Unit : It controls the overall operations for video signal processing/input/output, vehicle communication (CAN), and SVM system.

–	SVM Switch : The SVM switch signals are input to determine whether or not to provide images in forward display mode.

–	Vehicle Speed Sensor : The vehicle speed is transmitted to the SVM to check the SVM operation condition.

–	Camera (4 unit) : Each unit is mounted on the front, rear, and left/right outside mirrors to capture images from the surroundings and to transmit them to the SVM unit.

–	AVN Monitor : It provides the driver with the output image from the SVM unit through the monitor of the AVN (Audio, Video and Navigation system) head unit.

Description and operation

Description

Surround View Monitor (SVM) allows video monitoring of 360 degrees around the vehicle. The system consists of 4 ultra optical cameras mounted around the vehicle (front, both sides and rear).

The video images from these cameras are applied with distortion compensation, time point conversion, and video merging technologies to provide sky-view image of the vehicle's surrounding area, as well as various other view modes.

The SVM System provides video feed of the vehicle's surrounding area while parking or during low speed driving to the driver to enhance safety and driver's convenience.

Also, it features steering wheel synchronized guide line indication, front and rear object warning, and A/S (including In-Line) tolerance compensation.

This system displays the video images from ultra optical cameras mounted on 4 sides of the vehicle, on the Head Unit Screen. It shows 360 degrees sky-view image of the vehicle's arounding area, as well as various other view modes.

Blind-spot View Monitor (BVM)

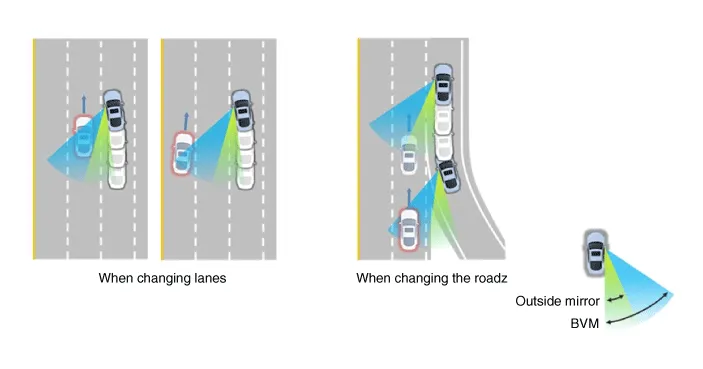

Blind-spot View Monitor (BVM) is a driving safety system that helps provide a more comprehensive views on areas which is not usually visible by the side mirrors when the vehicle tries to change the lane.

The BVM system provides a driver a more comprehensive view which is not usually visible by the side mirrors in certain situations like swithing drive lanes. The system helps to avoid any blind spot mishaps.

–	The rear side view is displayed in the cluster screen when the turning lights are in operation as the light switch goes up and down by the driver.

–	The SVM also provides an edited view of the left side/ right side without adding more cameras.

–	It helps minimize the distraction of the driver by displaying the rear side view that is usually hard to see.

•	The video will be played even though the side mirrors are folded. But it does not provide a proper view of the surroundings.

•	The video quality may be lower than the SVM video as the size of the original image has to be adjusted to fit the cluster.

•	The screen may temporarily fades out with changes in light conditions during daytime or with a sunrise or a sunset. Or when the car enters the tunnel.

•	The view of the surrounding objects provided by the system may look far away than views that are obtained by the side mirrors.

•	The brightness of the rear side video may change due to a mode switching delay of the SVM/BVM.

Major Features

Display Surrounding Area of Vehicle in Video

•

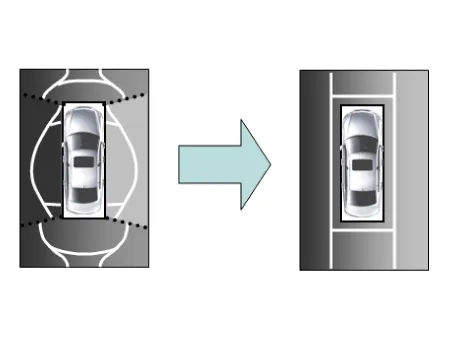

The surrounding area video display function displays 360 degrees video image captured from four cameras on the Head Unit Screen while the vehicle is moving at low speed or reversing. The SVM System displays total 8 video modes for displaying surrounding video based on the vehicle driving state and the driver's selection.

Guide Line Indication & Steering Wheel Synchronized Feature

•	The Guide Line Indication & Steering Wheel Synchronized Feature is the function that assists the driver in parking by synchronizing the steering wheel with the rear view video display marked with a guide line to help anticipate the direction of the reversing vehicle.

Front/Rear Object Warning (Obstacle Detection Feature)

•	The system receives obstacle warning signal from the PDW sensors mounted on the front/rear of the vehicle and displays the obstacle location on the AVN Head Unit Screen.

Tolerance Compensation (including A/S)

•	Manual Tolerance Compensation Software is embedded in the SVM ECM to compensate the SVM deviation that may occur due to assembly line installation tolerance. You must first setup proper work environment in order to perform correct tolerance compensation.

Rear-view display while driving

•	The function displays the rear view even in N or D upon request of the driver. It provides an optimized image under driving condition unlike parking mode.

Main Features

No.

Main Features

Detailed Description

Notes

8 Display View Modes

•	4 Front & 4 Rear Display View Modes

Merged Video Display of 8 Modes

Front Assist Mode Selection Feature

•	Display only the Front Mode by using the Front Mode Selection Switch

Same as the PDW SVM Switch

Rear Steering Synchronized Parking Guide Line Display

•	Displays Parking Guide Line by synchronizing with the steering wheel when going reverse.

Display over the Rear Video

PDW Obstacle Indication

•	Display obstacle warning from rear and front PDW

Display both on the Cluster and the Head Unit

User Setting Option

•	Select Steering Wheel Synchronized Guide Line Indication

•	Select Front/Rear Obstacle Indication

•	Select Initial Front/Rear View Screen

Provides additional screen settings

Assembly Line & A/S Tolerance Compensation Feature

•	Compensation - Tolerance Compensation for camera installation deviation and assembly line tolerance is required

Compensation function recognition logic applied

SVM Mode Entry Conditions

The vehicle information is accessed regularly, even after entering SVM mode. When the conditions are met, conversion from front mode to rear mode is available, and vice versa.

When the mode is converted, the view displayed on the screen can be the initial view or the previous view depending on the conditions.

If the mode for conversion is the initial entry, the default view is selected based on the front or rear. If a continuous front-rear conversion mode occurs as forward and backward movement are repeated for parking, the previous view is recalled and displayed.

–	Initial Entry : When the rear and front view modes in SVM mode are displayed on the screen for the first time.

–	Re-entry: When switching from SVM mode to another mode, without turning off SVM, and returning to the previous mode. (e.g. Rear → Front → Rear: Re-enter rear mode / Front → Rear → Front: Re-enter front mode)

Switch mode	Vehicle speed	Gear	SVM Switch	Display view
Rear → Front	Below 10 MPH (15 km/h)	"R" Range or "P" Range excluded	ON	Initial Entry: Front view set in the initial view mode option
				Re-entry: The last view mode displayed in the previous front mode
Front → Rear	Irrelevant	Reverse Gear	Irrelevant	Initial Entry: Rear view set in the initial view mode option
				Re-entry: The last view mode displayed in the previous rear mode

SVM Mode Disengagement

If the conditions below are satisfied while in SVM mode, the SVM is turned OFF and no video is displayed.

OFF Mode	Vehicle speed	Gear	SVM Switch	Notes
Front mode	Over 10 MPH (15 km/h)	"R" Range or "P" Range	OFF	If any of the three conditions is satisfied
Rear mode	Irrelevant	Except "R" gear	Irrelevant	If any of the two conditions is satisfied

SVM Options

Considering the user's convenience, the SVM provides three options for the user to select from.

The window for changing options (parking guide settings) is displayed on the AVN. Only the changed options are forwarded to the SVM ECU through M_CAN.

These three options are applied as soon as they are selected by the user. Based on the conditions, the initial views displayed are as follows.

Option	Function	Default setting
Guideline steering interlocking	Interlocks with steering to display the driving direction of the vehicle during parking.	Classification code
Close range warning indicator	Indicates front and rear obstacle detection	Classification code
Initial view mode setting	Default view displayed when entering SVM mode	Front + Around view
Initial view mode setting	Default view displayed when entering SVM mode	Rear + Around view

Operations for Guideline Steering Interlocking Indications

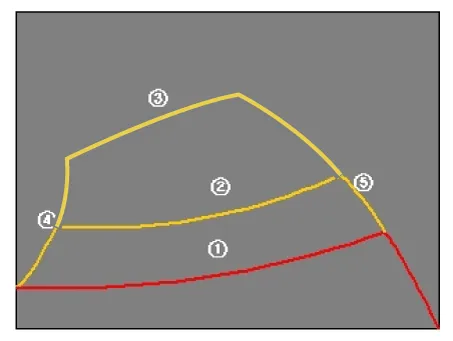

The guideline for steering interlocking trace is indicated by using the value of steering wheel angle periodically received by SVM ECU via C-CAN.

A combination of the rear area that displays of the rear mode (two-split mode) and the expected car movement trace displayed on the wide view is displayed.

View modes for guideline steering interlocking indications

Mode	View	Notes
Rear	Rear wide view + Surround View
	Rear top view + Surround View
	Rear side view + Surround View

Specifications for guideline steering interlocking trace lines

Description	Number	Distance	Color
Steering wheel interlocking trace lines	①	19.6 in. (0.5 m)	Red
	②	39.3 in. (1.0 m)	Yellow
	③	118.1 in. (3.0 m)	Yellow
	④	Vehicle left side end + 11.8 in. (0.3 m)	Red + Yellow
	⑤	Vehicle right side end + 11.8 in. (0.3 m)	Red + Yellow

SVM System

1.	SVM Video Output The SVM ECU displays the images from four installed cameras after passing the distortion correction and image synthesis steps and then displays the steering assist guidelines in analog format.

2.	SVM Switch The signals are input for control in forward display mode when the switch is ON.

3.	Ignition Input The SVM ECU displays video only on IGN2 ON and limits video output to SVM OFF when IGN2 is OFF. In order to check whether the IGN2 is ON, the SVM ECU uses the signals to the IGN pin or it uses the M-CAN messages routed to the C-CAN from the IGPM (Gateway).

4.	Switch Indicator Output The SVM ECU outputs the power of the LED on the SVM switch in PWM waveform to notify the driver whether or not the SVM switch is pressed.

5.	Chassis CAN Input (C-CAN) The SVM ECU receives the vehicle status data through the C-CAN and determines whether or not to perform key operations of the SVM.

6.	Multimedia CAN Input / Output The related information is processed after receiving M-CAN signals routed from the ICU to the C-CAN. The routed M-CAN signals are exchanged for data transmission and reception as follows:

Repair procedures

Inspection

Tolerance Compensation

Tolerance compensation compensates for the error margins of surround view video that occur due to the installation tolerance when the four cameras that comprise the SVM system are installed.

Tolerance compensation must be carried out when the following actions are performed:

–	When removing and installing a wide camera.

–	When conducting a body task such as the trunk task that causes the focus of the wide camera to change.

–	When replacing the door mirror with a wide camera.

–	When replacing the surround view monitoring unit.

Tolerance Compensation Environments

The Procedure of Manual Tolerance Compensation

Prepare in advance as below.

–	Confirm that the car hood, trunk and doors are closed.

–	Close the door after getting in on the driver side.

–	Switch the ignition to "IGN".

–	Unfold all side mirrors.

–	Shift the gear to N.

–	Check the flashing state of LED indicator lamp in the SVM switch.

–	During the advance preparation, do not install exhaust inhaler or other equipment that may block the view of rearview cameras.

–	Also, as exhaust fume may block the rearview image, blow off the smoke by using a fan before performing tolerance compensation with IGN ON.

–	Engage foot brake or electronic parking brake (EPB) to hold vehicle in place.

Before entering tolerance compensation mode, to check normal operation of SVM ECU and cameras, perform the following.

–	Check that initial setting screen of SVM is displayed. (Front view image + surround view image when shifted to N)

–	Check that front, rear, left and right images of surround view monitor are properly displayed.

–	If images are properly displayed, enter tolerance compensation mode. Otherwise, if images are abnormally displayed or are not displayed, replace relevant part.

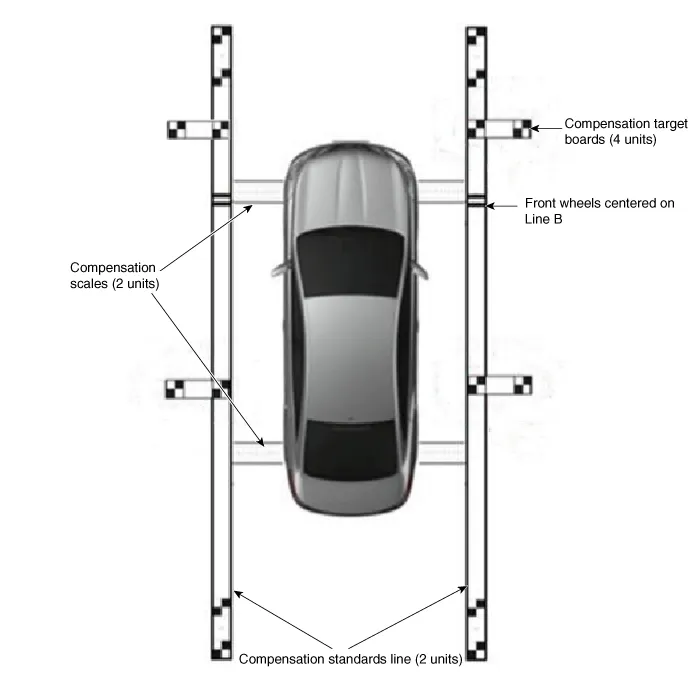

Install two compensation scales, two compensation reference line boards, and four compensation target boards around the vehicle by referring to the manual provided with the tools.

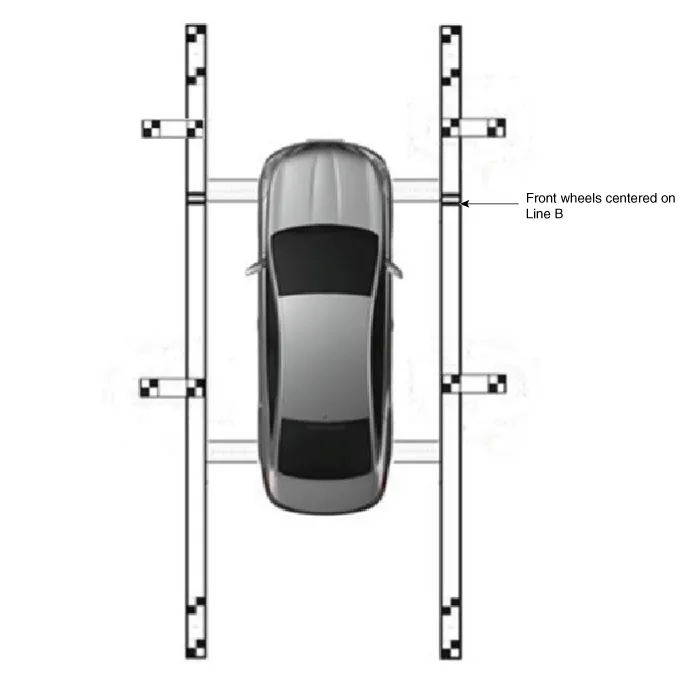

•	Align centers of front wheels to "B-type" on the compensation reference line board.

•	Accurately set the location (distance/angle) of the center of white and black compensation board as this is the reference point.

•	Front/rear and left/right alignment error margin should be below 3 cm.

•	Rotation error margin when aligning vehicle should be within 1° to left/right.

4.	Maintain ignition "ON" with vehicle stopped, check that the gear is in P, and engage parking brake even on flat ground.

5.	Perform work with SVM switched "ON".

6.	Connect the KDS to vehicle.

7.	Select vehicle model and system.

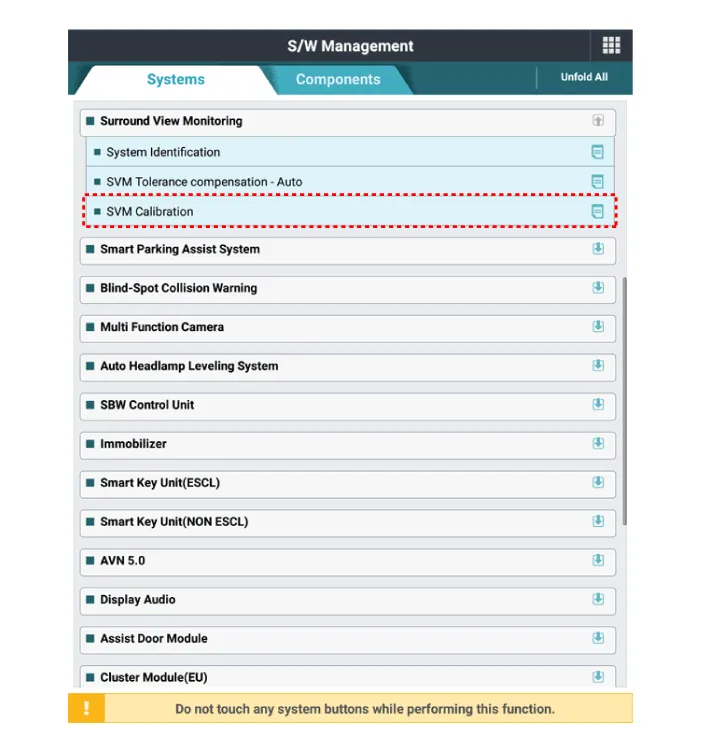

8.	Enter additional function in KDS.

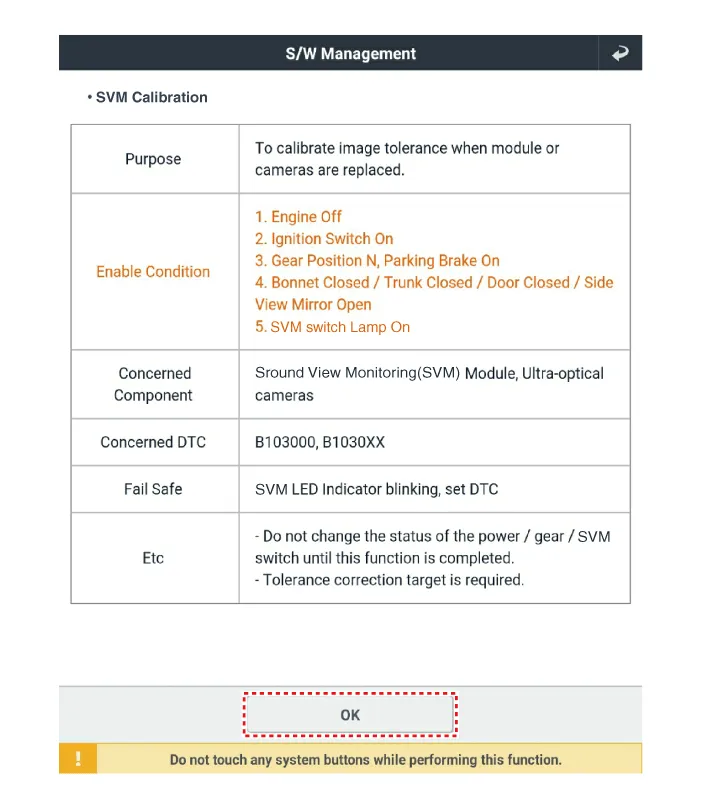

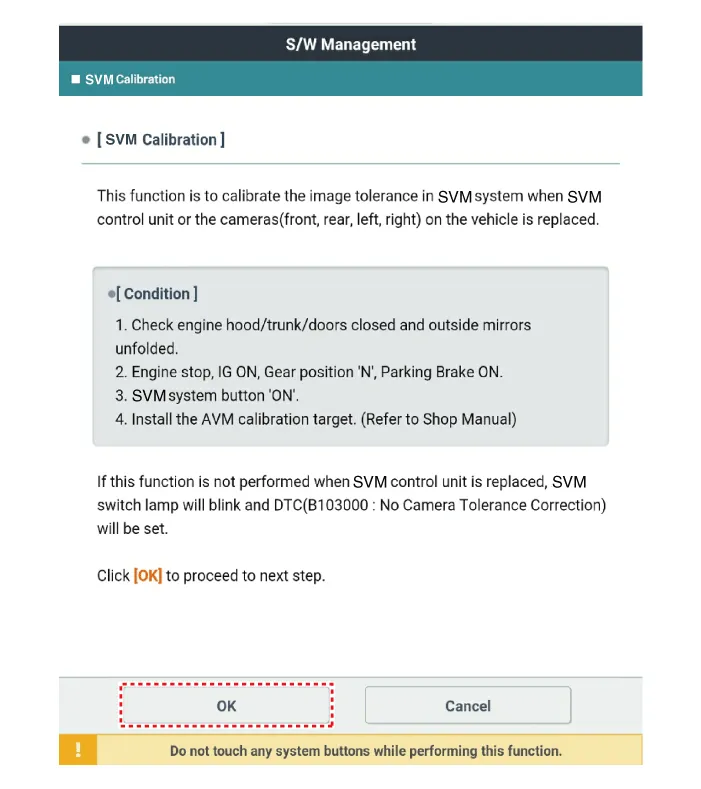

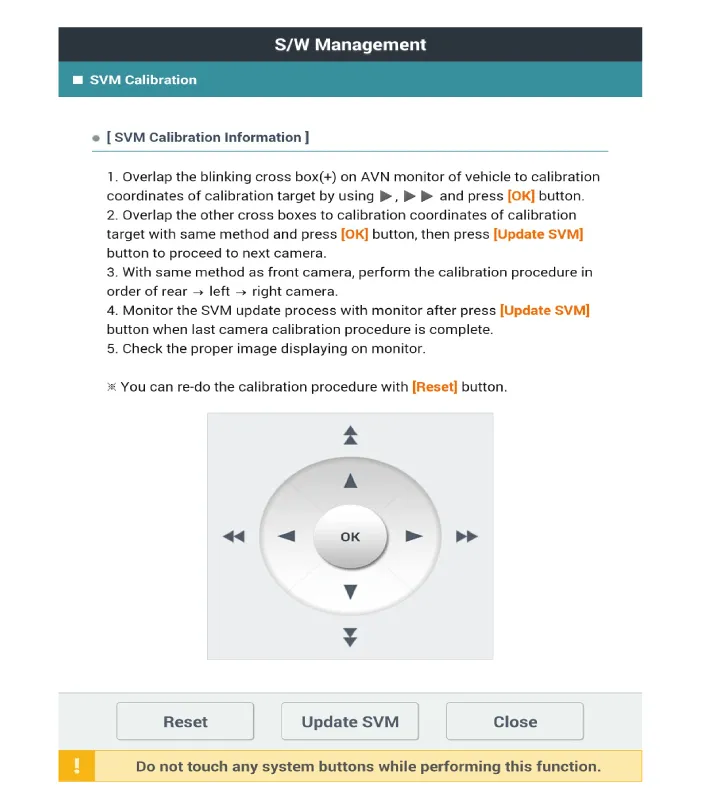

Perform SVM manual tolerance compensation as shown on KDS diagnostic device.

When "SVM tolerance compensation - Manual" is clicked on the KDS diagnostic device screen, the SVM switch indicator lamp will flash.

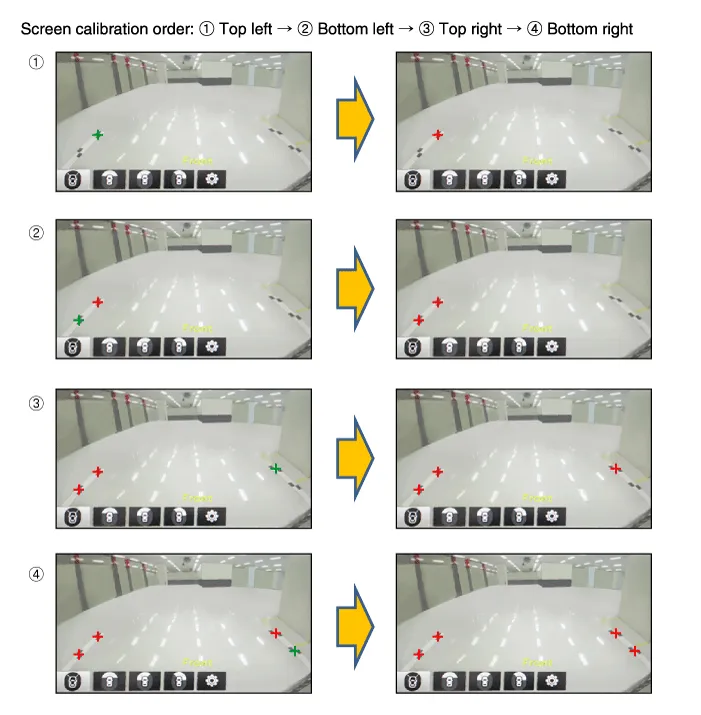

•	Before matching calibration points: "+" green light flashes

•	When clicking [OK] after matching calibration points: "+" red light ON

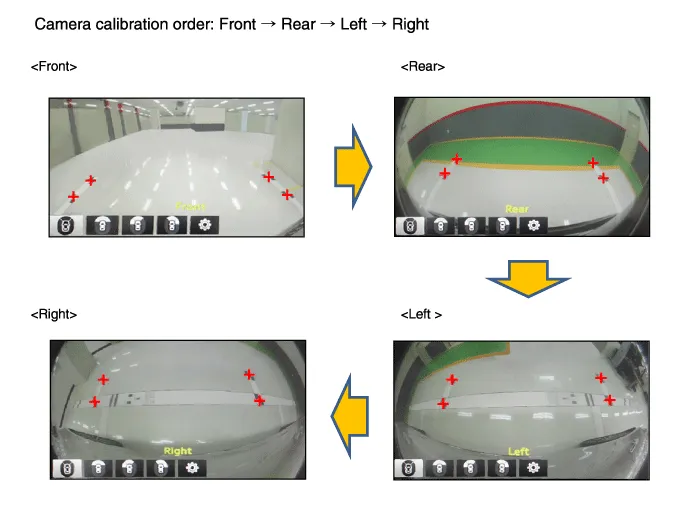

•	Match four frontal calibration points, and then perform calibration in the order from rear → left → right.

10.	To confirm completion of calibration, check the vehicle and calibration line on AVN monitor and click [OK]. If calibration has not been properly performed, click [Cancel] and reenter calibration points.
