Kia Optima: Advanced Driver Assistance System (ADAS) / Rear Corner Radar System

Kia Optima DL3 2019-2020 Service and Repair Manual / Advanced Driver Assistance System (ADAS) / Rear Corner Radar System

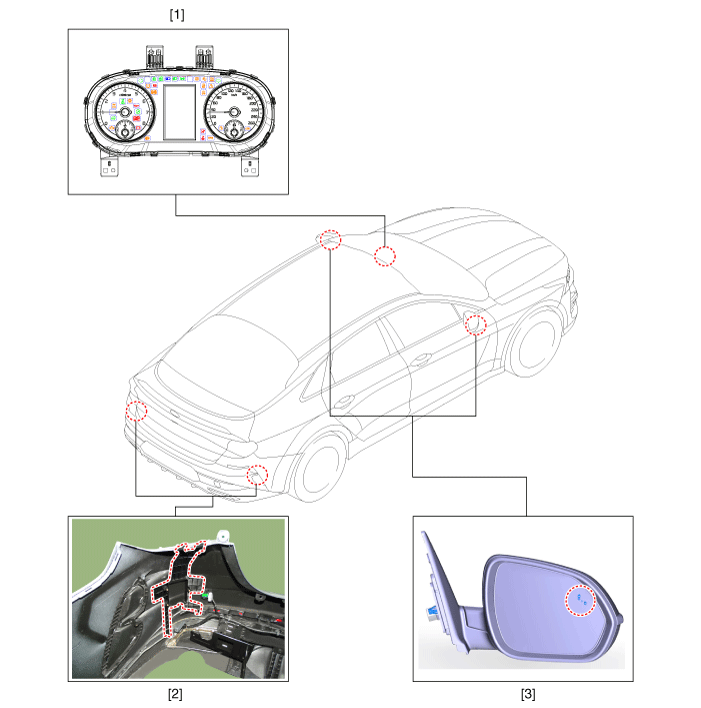

Components and components location
Components

1. Cluster (User setting menu)
2. Rear corner radar
3. Rear corner radar indicator


Description and operation
Description

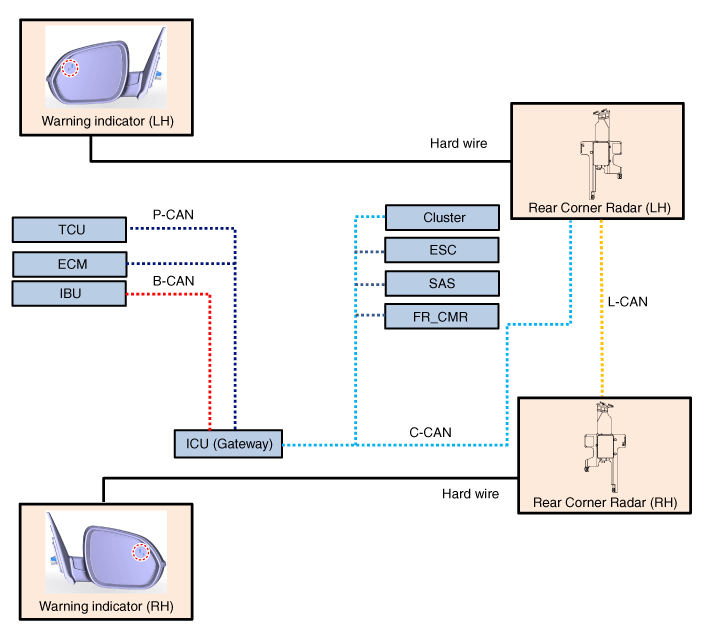

System Interface

System Function

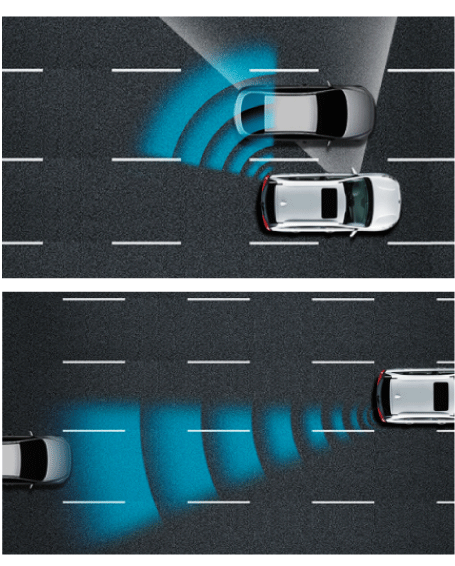

Blind-Spot Collision Warning (BCW)

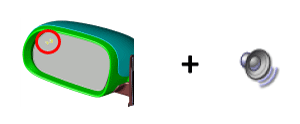

This system uses an audible warning and BCW signal on the mirror when sensing a vehicle in the blind spot area or when the vehicle is approaching at a high speed.

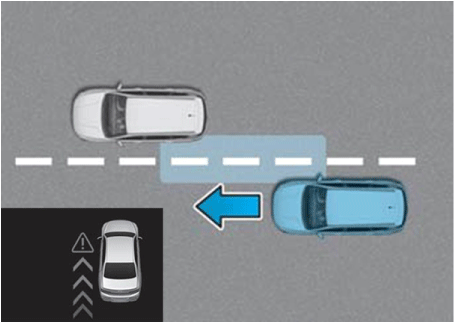

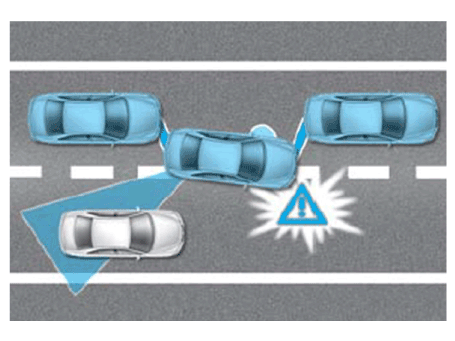

Blind-Spot Collision-Avoidance Assist (BCA)

If a lane departure occurs, the BCA is immediately activated to perform differential braking on the front wheel on the opposite side.

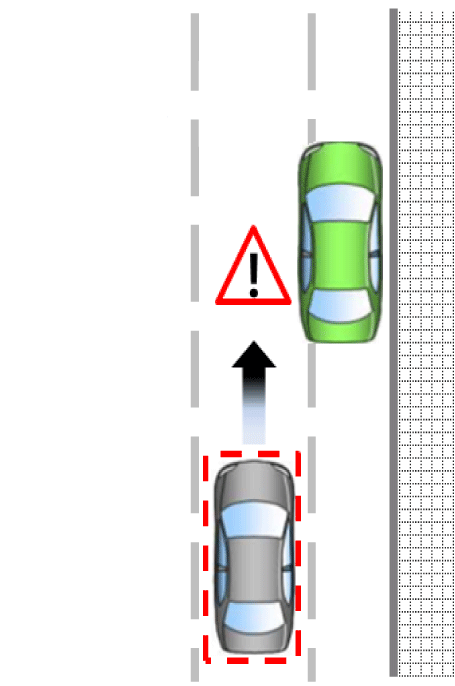

Safe Exit Assist (SEA)

When getting off the vehicle, SEA generates alarm to alert another vehicle approaching from the rear.

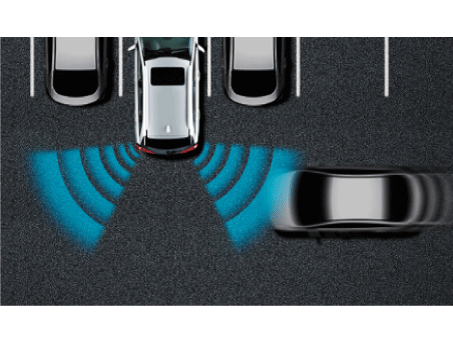

Rear Cross-Traffic Collision Warning (RCCW)

When the vehicle is in reverse, the RCCW generates alarm to driver alert another vehicle is approaching from the rear.

Rear Cross-Traffic Collision-Avoidance Assist (RCCA)

Warns the driver when it senses a vehicle approaching from the rear outer range while vehicle is in reverse (R) position.

Collision avoidance assistance applies the brakes in the event of a collision risk.

Alarm

Blind-Spot Collision Warning (BCW)


Warning
Description

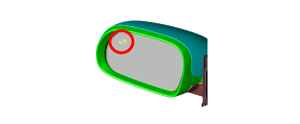

1-1

If the moving vehicle enters in the warning area

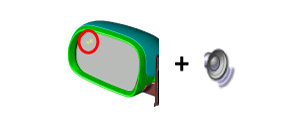

1-2

If the driver's attention of changing lanes is detected during the first warning : Turn signal lamp switch on
2

If the driver's attention of changing lanes is detected during the first warning

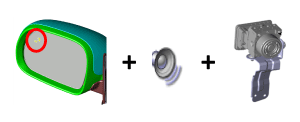

Blind-Spot Collision-Avoidance Assist (BCA)

Level
Warning
Description
2

If a lane departure occurs, differential braking on the front wheel on the opposite side.

Rear Cross-Traffic Collision Warning (RCCW)

Level
Warning
Description
1

If the moving vehicle enters in the warning area

Rear Cross-Traffic Collision-Avoidance Assist (RCCA)

Level
Warning
Description
2

Brake control in the event of a collision risk

Warning Condition

Blind-Spot Collision Warning (BCW)

1.

BCW activation condition

(1)

USM : 「Driver Assistance > Blind-Spot Safety > Active Assist or Warning Only」

(2)

Vehicle Speed : 20 - 255 km/h (12 - 155 mile/h)

(3)

Relative vehicle speed : -15 to 255 km/h (-9 to 158 mile/h)

(Negative value refers to the distance of the vehicle ahead.)

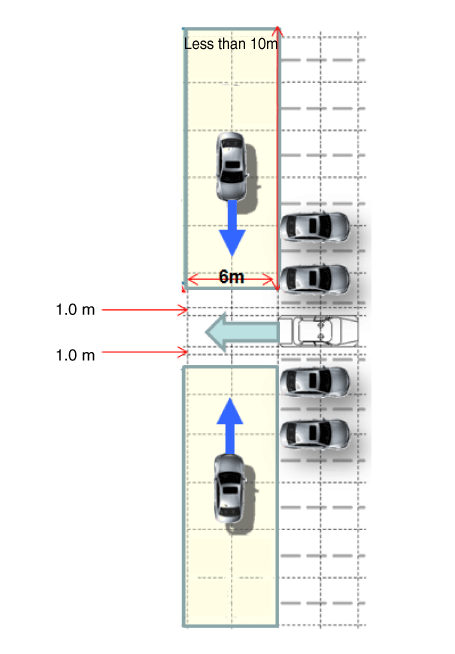

2.

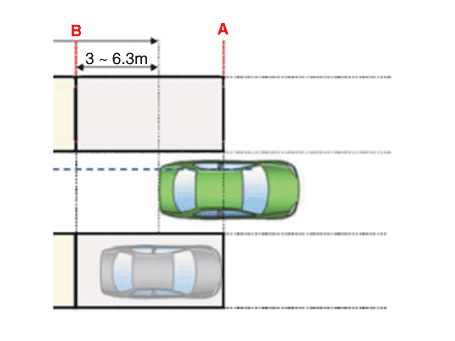

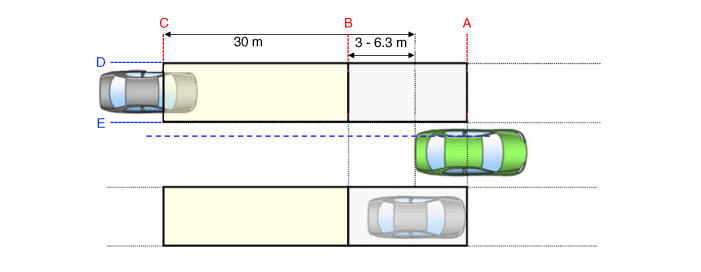

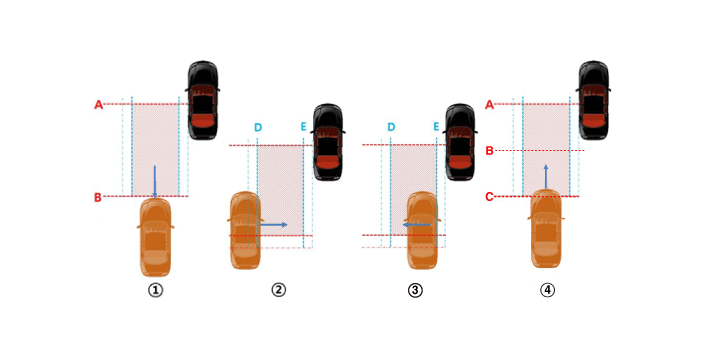

Warning zone

A to B : Blind spot zone

B to C : Closing vehicle zone

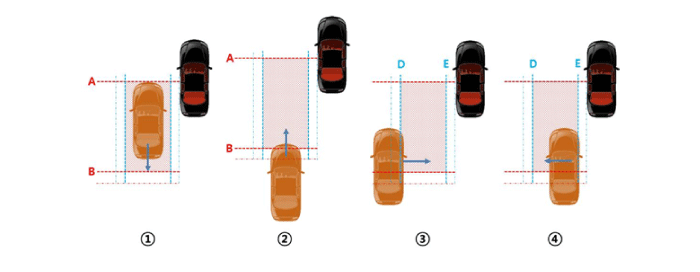

(1)

Conditions for blind spot zone warning ON

① The entire body of the target vehicle is located behind line A.

② Any part of the target vehicle passes line B.

③ Any part of the target vehicle that passes line D and enters.

④ The entire part of the target vehicle passes the E.

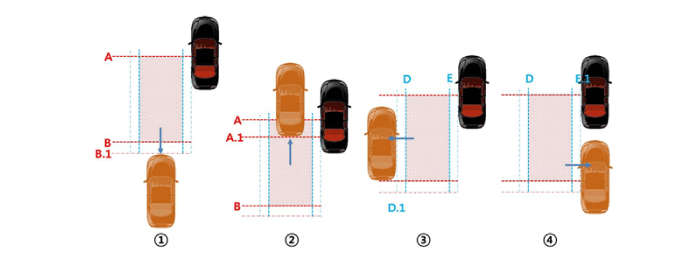

(2)

Conditions for blind spot zone warning OFF

① The entire body of the target vehicle is move behind line B.1.

② The entire body of the target vehicle passes line A.1.

③ The entire body of the target vehicle passes line D.1.

④ The entire body of the target vehicle passes line E.1.

(3)

Conditions for closing vehicle zone warning ON

① The entire body of the target vehicle is located before line B.

② Any part of the target vehicle passes line D.

③ The entire body of the target vehicle passes line E.

④ In the all above condition, Time To Collision (TTC) is less than 4.5 seconds.

(4)

Conditions for closing vehicle zone warning OFF

① The entire body of the target vehicle passes line A.1.

② The entire body of the target vehicle passes line D.1.

③ The entire body of the target vehicle passes line E.1.

④ In the all above condition, Time To Collision (TTC) is less than 4.5 seconds.

Blind-Spot Collision-Avoidance Assist (BCA)

1.

BCA activation condition

(1)

USM : 「Driver Assistance > Blind-Spot Safety > Active Assist」

(2)

Vehicle Speed : 60 - 200 km/h (40 - 120 mile/h)

(3)

Same front view camera operation condition

Safety Exit Assist (SEA)

1.

SEA activation condition

(1)

USM : Check「Driver Assistance > Parking Safety > Safety Exit Assist」

(2)

Vehicle speed : 0 to 3 km/h (0 to 2 mile/h)

(Before the door lock, operate for 10 minutes after turning off the ignition.)

(3)

Relative vehicle speed : More than 5 km/h (More than 3 mile/h)

(4)

Operating distance : 0 - 25 m (0 - 82.0 ft)

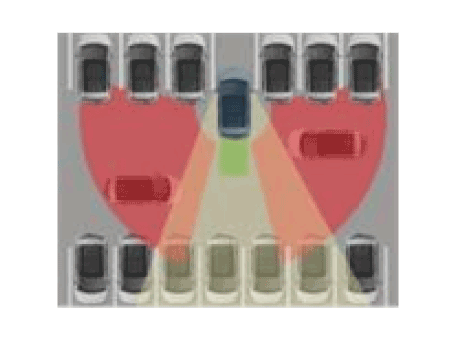

Rear Cross-Traffic Collision Warning (RCCW)

1.

RCCW activation condition

(1)

USM : Check「Driver Assistance > Parking Safety > Rear Cross-Traffic Safety」

(2)

Shift lever position : R range

(3)

Vehicle speed : -10 to 0 km/h (-7 to 0 mile/h)

(4)

Relative vehicle speed : More than 5 km/h (More than 3 mile/h)

(5)

Operating distance : 0.5 - 25 m (1.6 - 82.0 ft)

2.

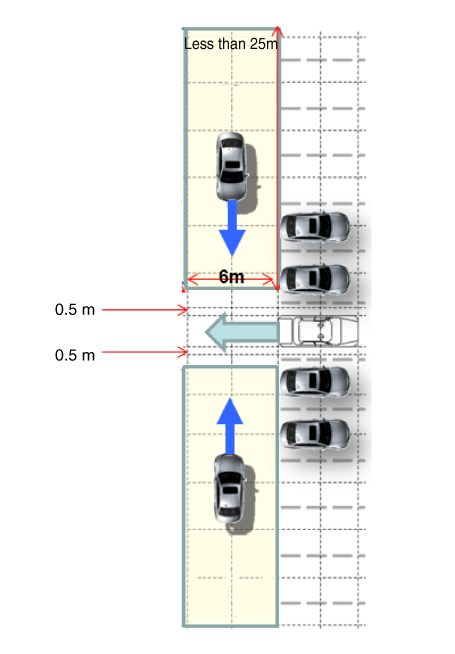

Warning zone

(1)

Conditions for RCCW ON

① Conditions: Shift lever "R" selection & 10 ㎞/h or lower vehicle speed, More than 5 km/h (More than 3 mph) relative vehicle speed, Distance 0.5 - 25 m (1.6 - 82.0 ft).

② A warning is generated for the target vehicle if it is between 2.1 - 3.5 seconds based on Time To Intervention (TTI) when entering target vehicle is located warning zone.

Rear Cross-Traffic Collision-Avoidance Assist (RCCA)

1.

RCCA activation condition

(1)

USM : Check「Driver Assistance > Parking Safety > Rear Cross-Traffic Safety」

(2)

Shift lever position : R range

(3)

Vehicle speed : -10 to 0 km/h (-7 to 0 mile/h)

(4)

Relative vehicle speed : More than 5 km/h (More than 3 mile/h)

(5)

Operating distance : 0.5 - 10 m (1.6 - 32.8 ft)

2.

Warning zone

(1)

Conditions for RCCA ON

① Conditions: Shift lever "R" selection & 10 ㎞/h or lower vehicle speed, More than 5 km/h (More than 3 mph) relative vehicle speed, Distance 0.5 - 10 m (1.6 - 32.8 ft).

② A warning is generated for the target vehicle if it is between 2.1 - 3.5 seconds based on Time To Intervention (TTI) when entering target vehicle is located warning zone.

③ Braking happens for the target vehicle within 2 seconds based on TTI.

Troubleshooting
Troubleshooting

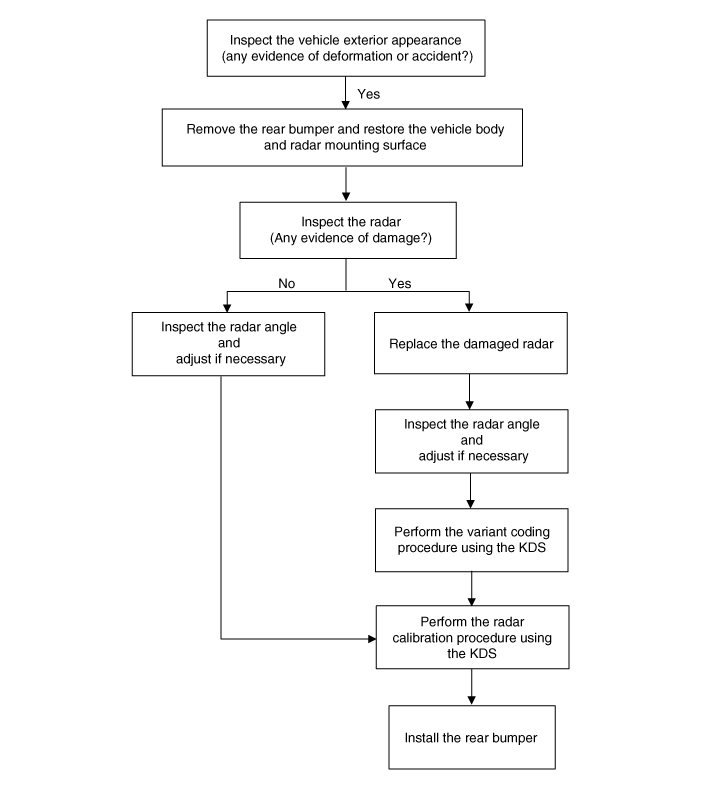

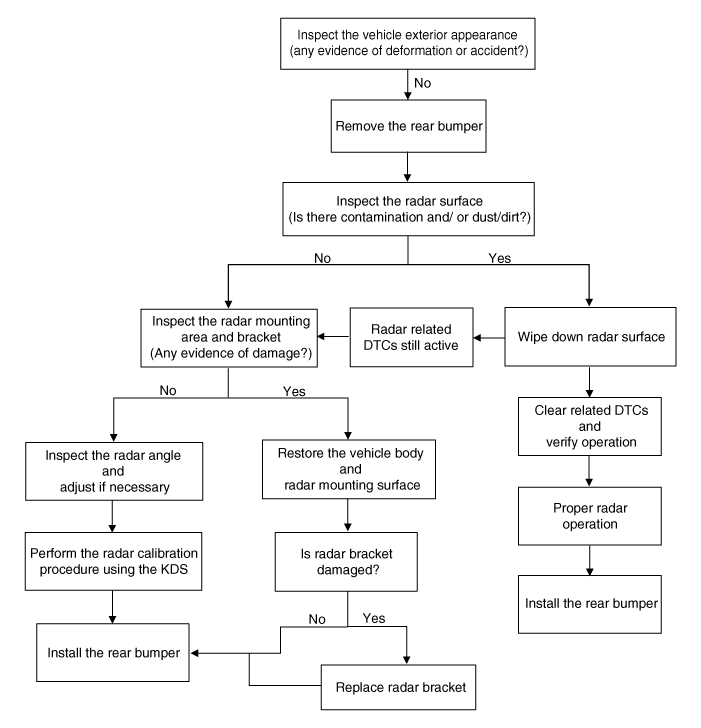

When a missing calibration DTCs occurs, follow the troubleshooting flowchart below.

If there is no evidence of deformation or accident

If there is any evidence of deformation or accident
