Kia Optima: Rear Door / Rear Door Belt Inside Weatherstrip

Kia Optima DL3 2019-2020 Service and Repair Manual / Body (Interior and Exterior) / Rear Door / Rear Door Belt Inside Weatherstrip

Repair procedures
Replacement
1.

Remove the rear door trim.

(Refer to Rear Door - "Rear Door Trim")

2.

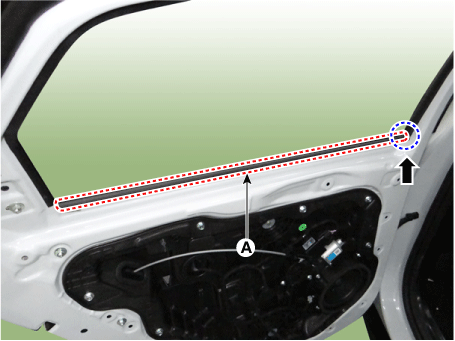

Remove the rear door belt inside weatherstrip (A).

3.

To install, reverse the removal procedure.



When installing, install it by first contacting the inside part (basis point of assembly) of arrow to door frame.

Replace any damaged clips.
