Kia Optima DL3: Lighting System / Fog Lamp

Kia Optima DL3 2019-2026 Service and Repair Manual / Body Electrical System / Lighting System / Fog Lamp

Repair procedures

Removal

Front Fog Lamp

1.

Disconnect the negative battery terminal.
2.

Remove the front bumper assembly.

(Refer to Body - "Front Bumper Assembly")

3.

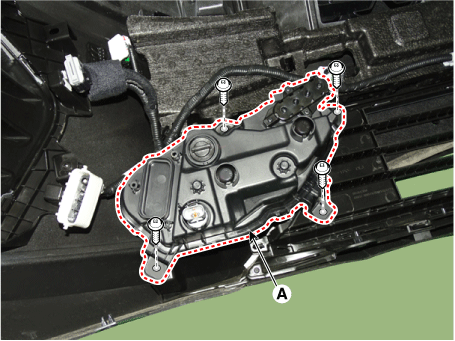

Remove the front fog lamp assembly (A) by loosening the mounting screws.
Installation
1.

Install in the reverse order of removal.



If the front fog lamp needs to be adjusted, refer to fog lamp aiming procedure.

(Refer to Fog Lamp - "Adjustment")

Adjustment

Front Fog Lamp Aiming Procedures


•

The fog lamps should be aimed with the proper beam-setting equipment, and in accordance with the equipment manufacturer's instructions.

•

If there are any regulations pertinent to the aiming of fog lamps in the area where the vehicle is to be used, adjust so as to meet those requirements.

If beam-setting equipment is not available, proceed as follows :
1.

Inflate the tires to the specified pressure and remove any loads from the vehicle except the driver, spare tire, and tools.

2.

The vehicle should be placed on a flat floor.

3.

Draw vertical lines (passing through respective fog lamp centers) and a horizontal line (passing through center of fog lamp) on the screen.

4.

With the fog lamps and battery in normal condition, aim the fog lamps so the brightest portion falls on the horizontal and vertical lines.

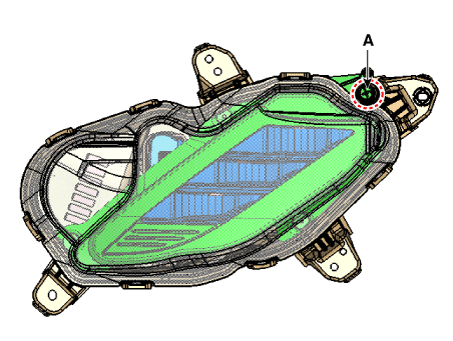

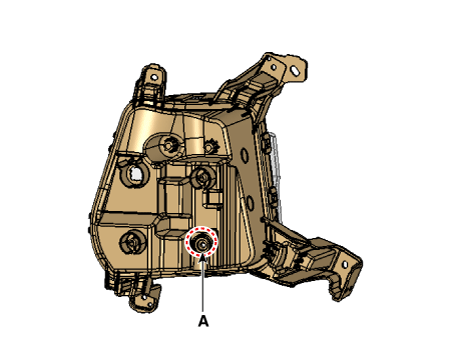

A : Fog vertical

[General type]
[GT-Line type]

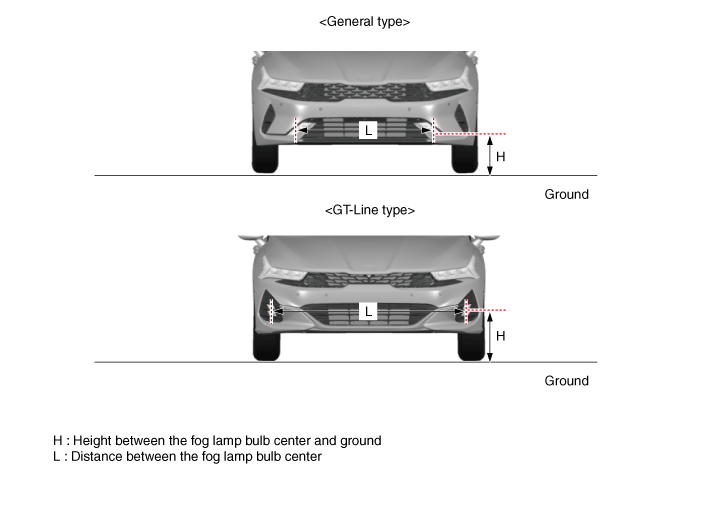

Fog Lamp Aiming Point

[General type]

Vehicle condition
H
L
Note
Empty
 338 (13.3070)
 1052 (41.4173)
 ALL DIM in mm (in.)
1 person on board
 333 (13.1102)

[GT-Line type]

Vehicle condition
H
L
Note
Empty
 377 (14.8425)
 1527 (60.1181)
 ALL DIM in mm (in.)
1 person on board
 372 (14.6456)

1.

Turn the front fog lamp on without the driver aboard.
2.

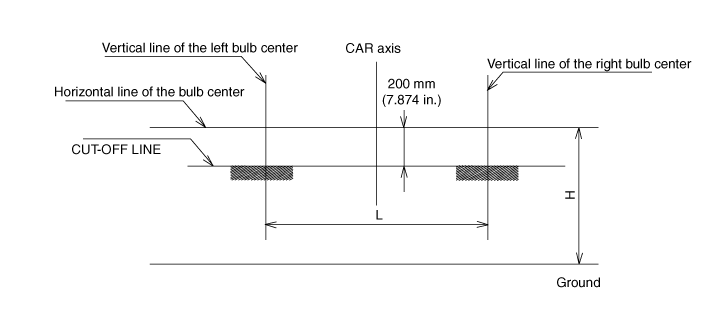

The cut-off line should be projected in the allowable range (shaded region).

    Specifications Specification Item Tyep Watt (W) Front Headlamp A Type High beam LED - Low beam LED - Position/DRL LED - B Type High beam LED - Low beam LED - Low assist LED - Position/DRL LED - Turn signal lamp LED - Fog lamp LED - Turn signal lamp (Front air duct) PY21W 21 Turn signal lamp (Outside mirror side) LED - Rear Rear combination lamp A Type Tail/Stop lamp 21/5W 21/5 Tail lamp W5W 5 Turn signal lamp PY21W 21 Back up lamp W16W 16 B Type Tail/Stop lamp LED - Tail lamp LED - Turn signal lamp PY21W 21 Back up lamp W16W 16 High mounted stop lamp LED - License plate lamp W5W 5 Interior Overhead console lamp LED - Room lamp LED - Personal lamp LED - Vanity lamp W5W 5 Trunk room lamp FESTOON 5 Components and components location Component Location 1.

    Schematic diagrams Connector and Terminal Function Repair procedures Removal 1. Disconnect the negative battery terminal.
