Components and components location

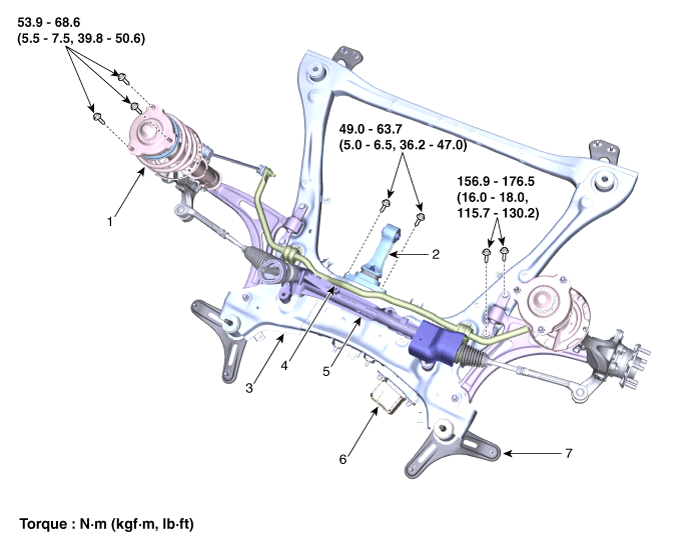

Components

1. Strut complete
2. Roll rod bracket
3. Sub frame
4. Stabilizer bar
5. Steering gear box
6. Dynamic damper
7. Sub frame stay

Suspension System
Service data Service Data Front Suspension Item Specification Suspension type Macpherson Strut Shock absorber ty ...

Front Strut Assembly
Components and components location Components 1. Strut assembly 2. Insulator dust cap 3. Insulator 4. Spring upper pad 5. Strut bearing 6. Strut bear ...
