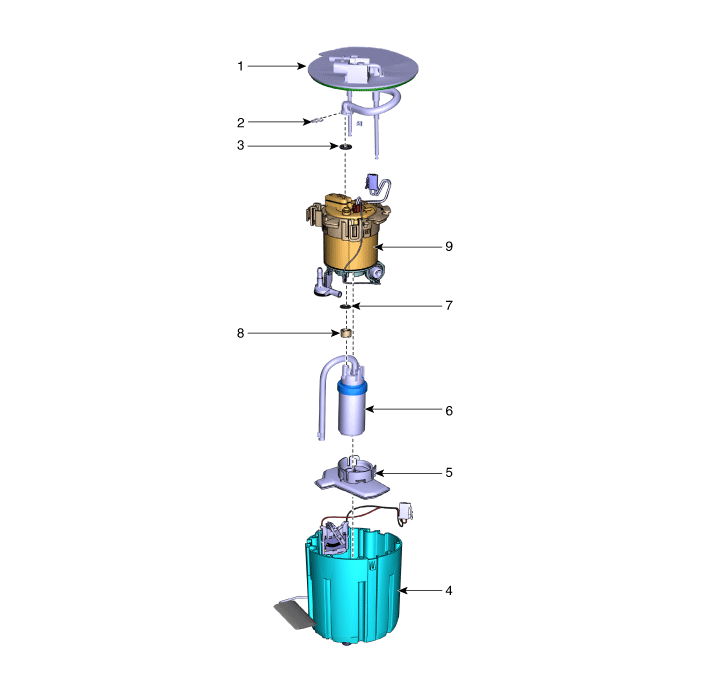

| Component |

| 1. Plate Assembly 2. Clip 3. O-ring 4. Fuel Reservoir Cup 5. Fuel Pump Filter |
6. Fuel Pump & Tube Assembly
7. O-ring 8. Spacer 9. Fuel Filter |
| Removal |
| 1. |
Remove the fuel pump module. (Refer to Fuel Delivery System - "Fuel Pump Module") |
| 2. |

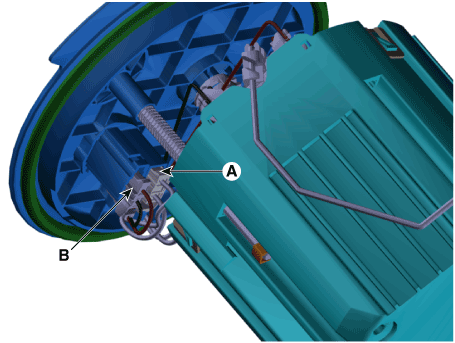

Disconnect the fuel pump motor connector (A) and fuel sender connector (B).
|
| 3. |

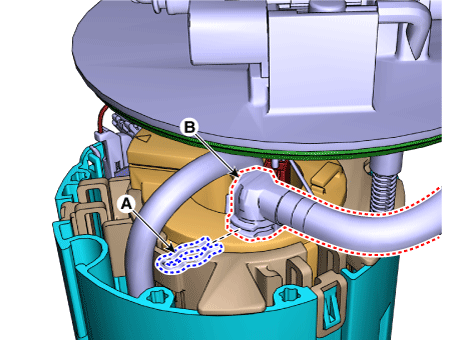

Remove the fuel feed tube quick-connector (B) after remove the clip (A).
|
| 4. |

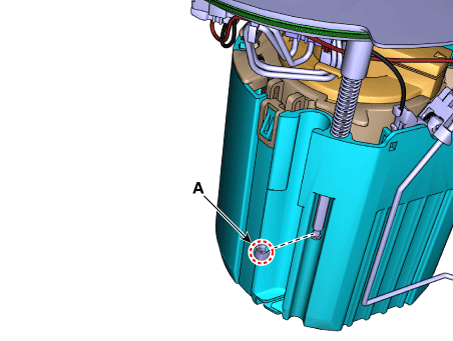

Remove the stopper (A) from the plate pipe.
|
| 5. |

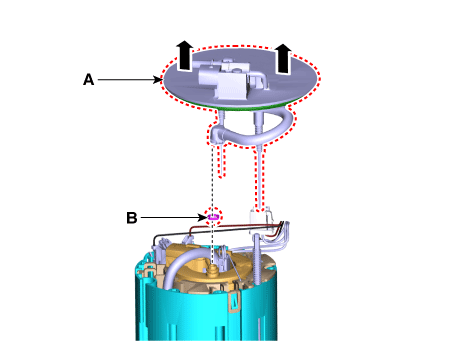

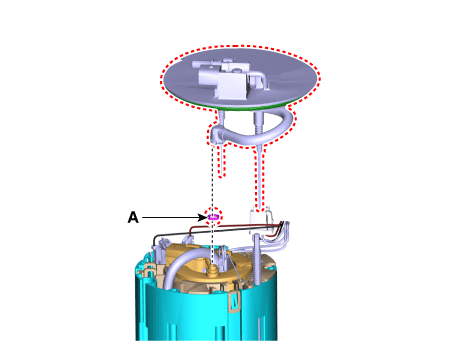

Remove the head assembly (A) and O-ring (B).
|
| 6. |

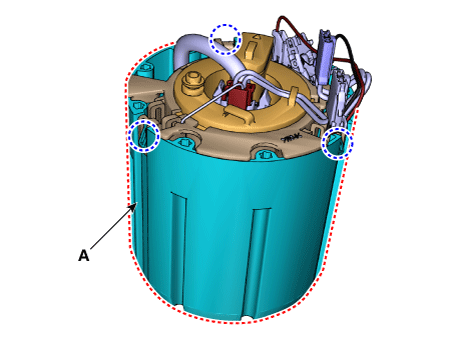

Remove the reservoir cup (A) after releasing the fixing hooks.
|
| 7. |

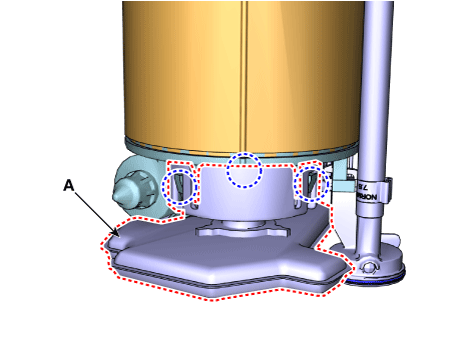

Remove the pump filter (A) after releasing the fixing hooks.
|
| 8. |

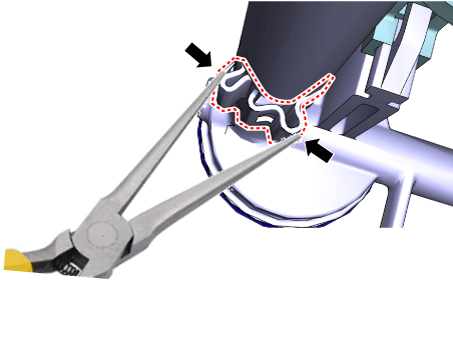

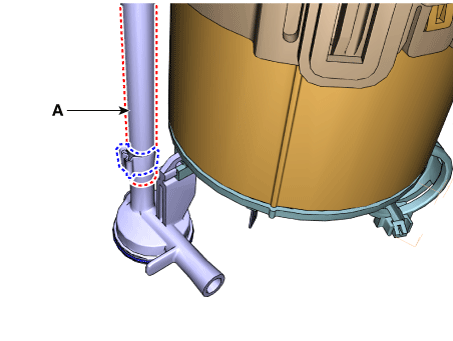

Disconnect the fuel pump hose (A) after releasing the clamp.
|
| 9. |

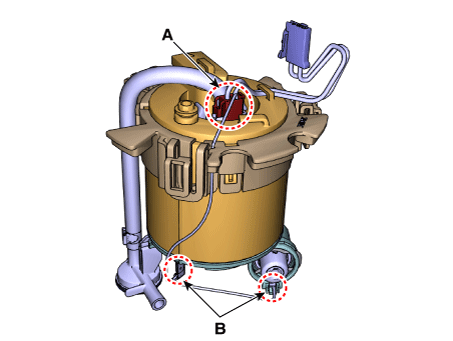

Remove the wiring from the fuel filter after disconnecting the fuel pump connector (A) and ground (B).
|
| 10. |

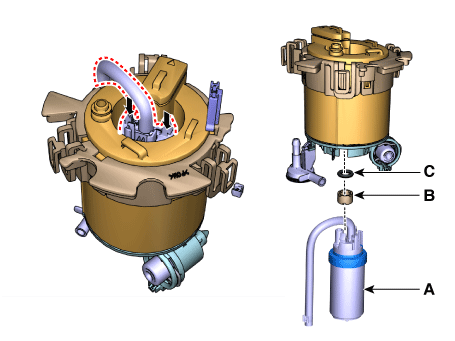

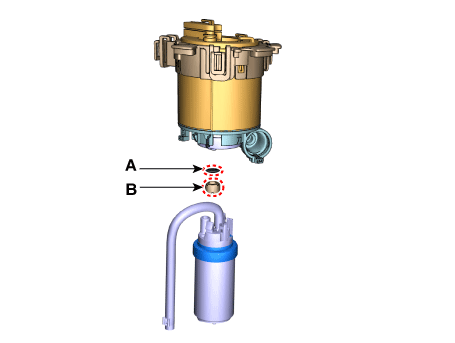

Remove the spacer (B) and O-ring (C) after removing the fuel pump & tube (A).
|
| Installation |
| 1. |
Install in the reverse order of removal. |
|
