Components and components location

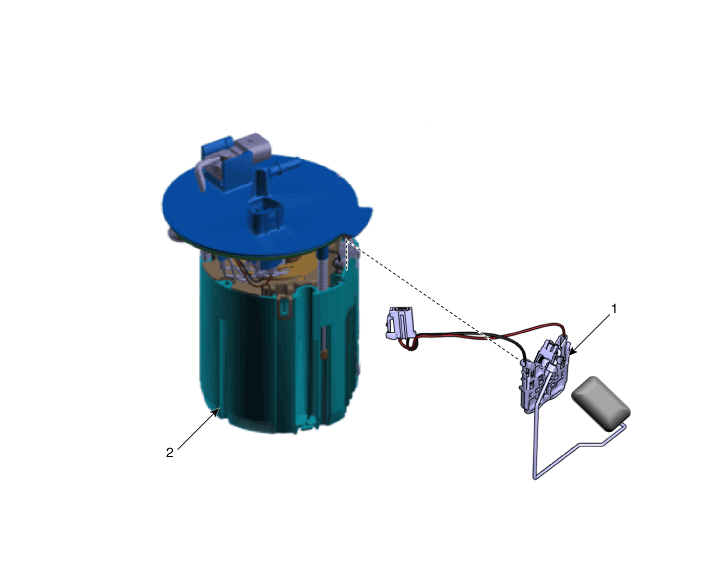

Component

1. Fuel Sender Assembly
2. Fuel Pump Module

Repair procedures
Removal
1.

Remove the fuel pump.

(Refer to Fuel Delivery System - "Fuel Pump Module")

2.

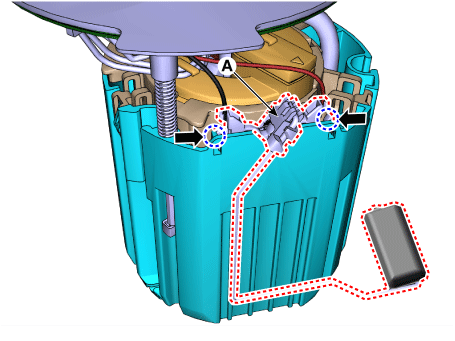

Disconnect the fuel sender connector (A).

3.

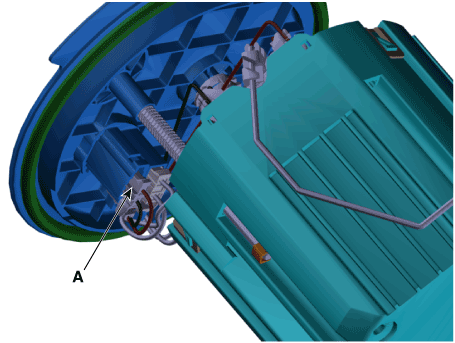

Remove the fuel sender assembly (A) after releasing the fixing hooks.

Installation
1.

Install in the reverse order of removal.
