| Components |

|

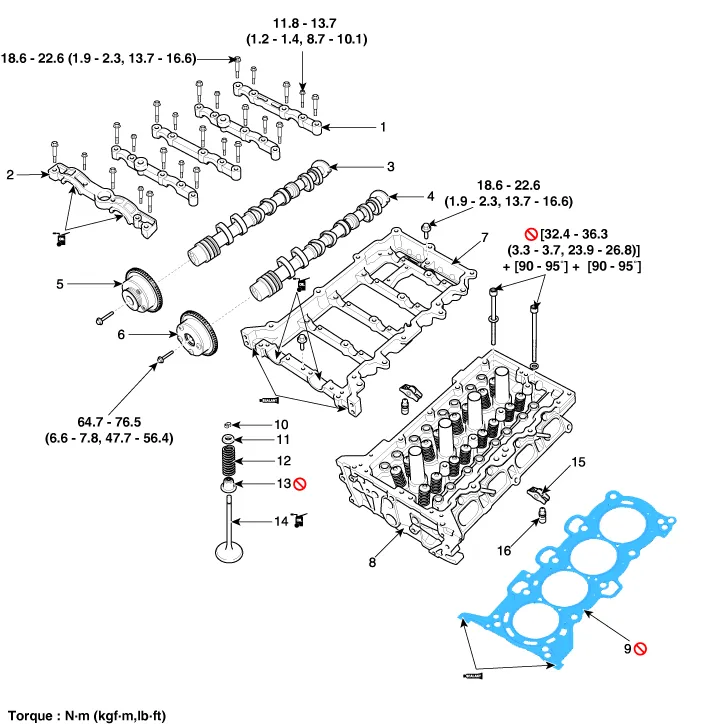

1. Camshaft bearing cap 2. Camshaft front bearing cap 3. Exhaust camshaft 4. Intake camshaft 5. Exhaust CVVT assembly 6. Intake CVVT assembly |
7. Cam carrier 8. Cylinder head 9. Cylinder head gasket 10. Retainer lock 11. Retainer 12. Valve spring |
13. Valve stem seal 14. Valve 15. Swing arm 16. Hydraulic lash adjuster (HLA) |
