Kia Optima DL3: Hood / Hood Insulator Pad
Repair procedures
| Replacement |
| 1. |

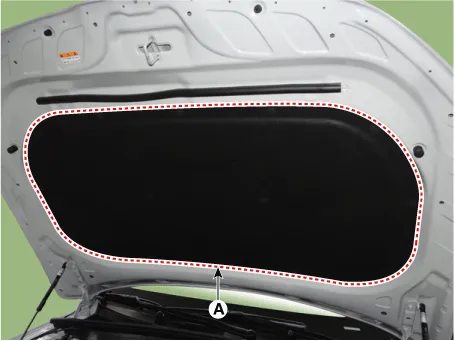

Using a clip remover, remove the clips and then the hood insulator pad (A).
|
| 2. |
To install, reverse the removal procedure.
|
Components and components location Component Location 1. Hood assembly Repair procedures Replacement When removing the fender, wrap protective tape around a screwdriver or remover not to damage components.
Repair procedures Replacement 1. Remove the hood seal weatherstrip (A) and then remove the clip from the panel. Be careful not to scratch the hood seal weatherstrip.
