Kia Optima DL3: Brake System / Parking Brake System

Components and components location

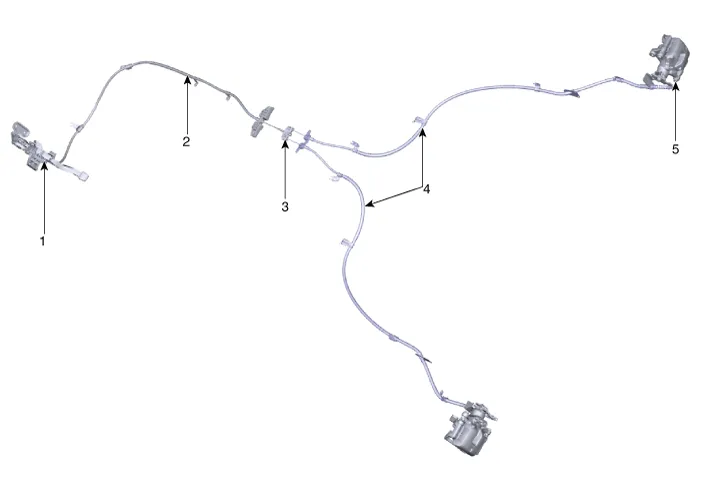

Components

1. Parking brake pedal assembly
2. Front parking brake cable
3. Equalizer assembly

4. Rear parking brake cable
5. Rear caliper assembly
