Kia Optima DL3: Body (Interior and Exterior) / Trunk Trim
Components and components location
| Component Location |

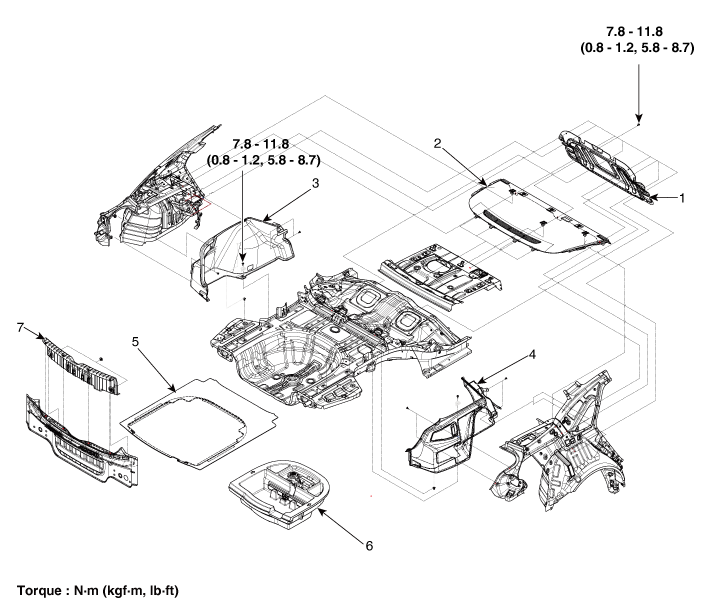

[General type]
| 1. Luggage partition center trim
2. Rear package tray trim 3. Luggage side trim [LH] 4. Luggage side trim [RH] |
5. Luggage covering mat 6. Luggage floor mat 7. Rear transverse trim |

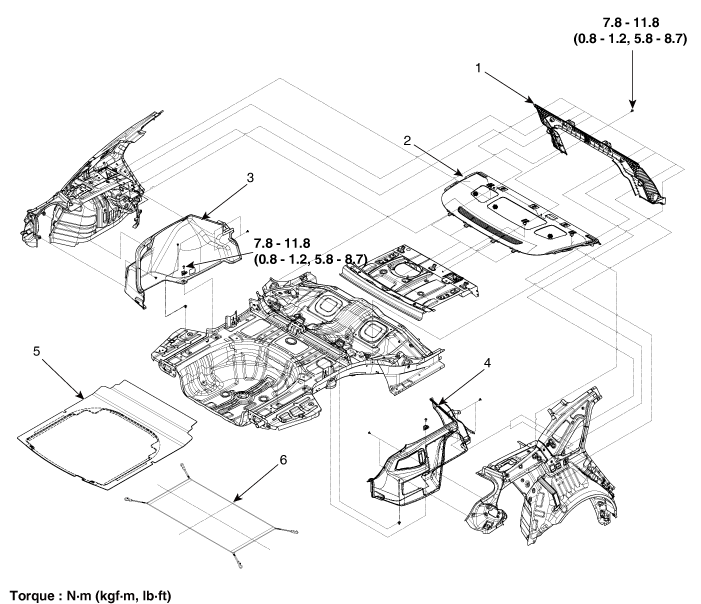

[Option type]
| 1. Luggage partition center trim
2. Rear package tray trim 3. Luggage side trim [LH] |
4. Luggage side trim [RH] 5. Luggage covering mat 6. Luggage net |
Components and components location Component Location 1. Rear pillar trim Repair procedures Replacement • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Components and components location Component Location 1. Rear package tray trim Repair procedures Replacement Rear package tray trim • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
