Kia Optima DL3: Engine Mechanical System / Cylinder Block
Components and components location

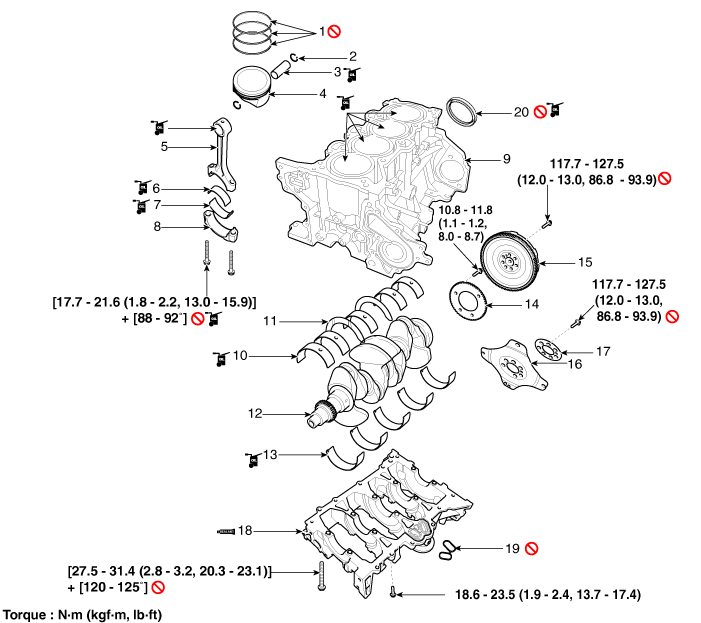

| Components |
|
1. Piston ring 2. Snap ring 3. Piston pin 4. Piston 5. Connecting rod 6. Connecting rod upper bearing 7. Connecting rod lower bearing |
8. Connecting rod bearing cap 9. Cylinder block 10. Crankshaft upper bearing 11. Crankshaft thrust bearing 12. Crankshaft 13. Crankshaft lower bearing 14. Crankshaft position sensor (CKPS) wheel |
15. Flywheel 16. Drive plate 17. Adapter plate 18. Lower crankcase 19. Gasket 20. Rear oil seal |
Components and components location Components 1. Water inlet fitting 2. Thermostat 3. Bypass hose 4. Heater pipe & hose assembly Repair procedures Removal and Installation Disassembly of the thermostat would have an adverse effect, causing a lowering of cooling efficiency.
Components and components location Components 1. Adapter plate 2. Drive plate Repair procedures Removal and Installation 1.
