Components and components location

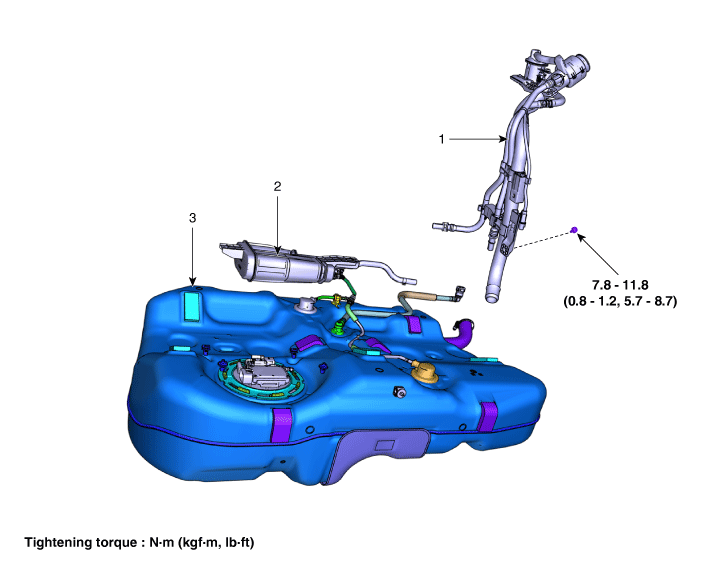

Components

1. Filler-Neck Assembly
2. Canister
3. Fuel Tank Complete

Repair procedures
Removal
1.

Disconnect the negative (-) battery terminal.

2.

Remove the rear wheel guard.

(Refer to Body - "Rear Wheel Guard")

3.

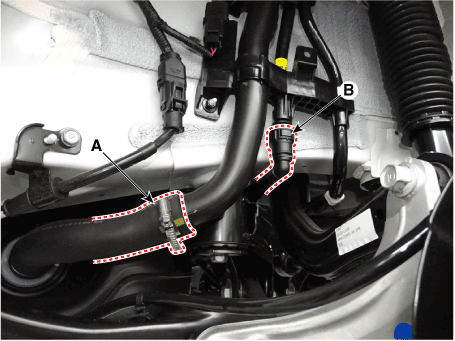

Disconnect the fuel filler hose (A) and leveling quick-connector (B).

4.

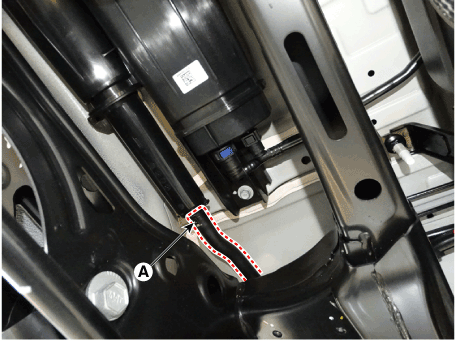

Disconnect the ventilation hose (A).

5.

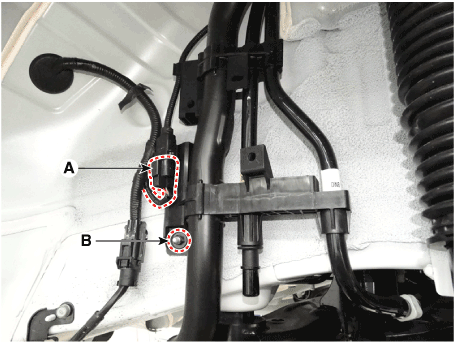

Remove the filler-neck assembly by loosening the mounting nut (B) after disconnecting the canister close valve connector (A).

Tightening torque :

7.9 - 11.7 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.6 lb·ft)

Installation
1.

Install in the reverse order of removal.
