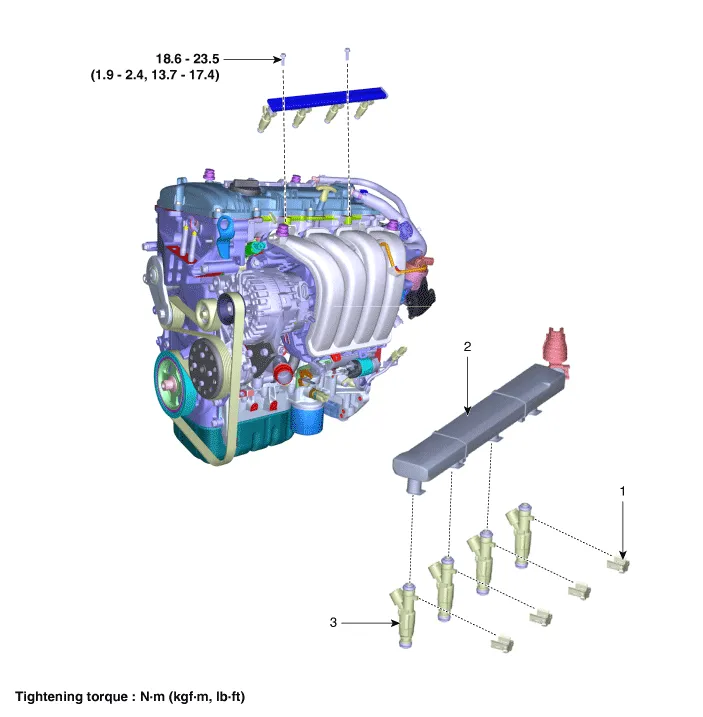

| Components |

| 1. Clip 2. Delivery Pipe |
3. Injector |
| Removal |
| 1. |
Release the residual pressure in fuel line. (Refer to Fuel Delivery System - "Release Residual Pressure in Fuel Line")
|
| 2. |
Disconnect the negative battery terminal. |
| 3. |

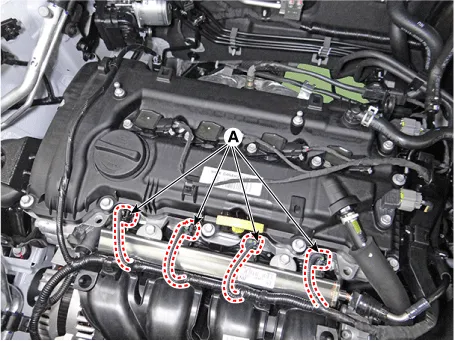

Disconnect the injector connector (A).
|
| 4. |

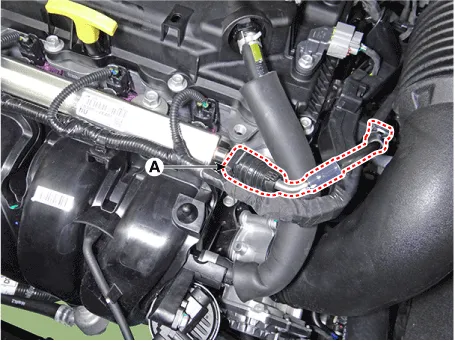

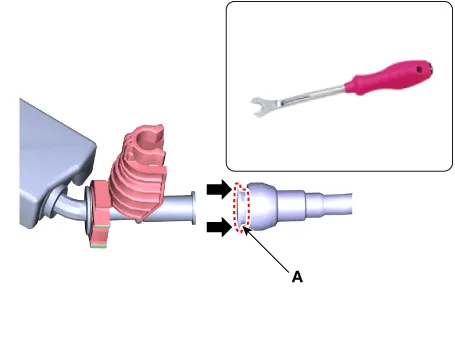

Separate the fuel feed tube quick-connector (A).
|
| 5. |

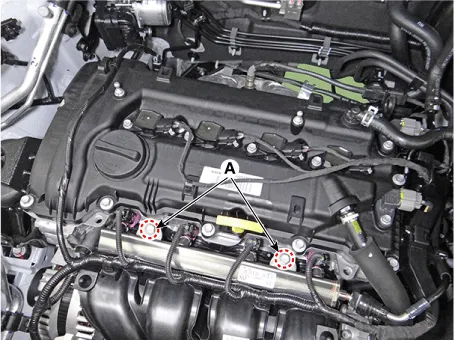

Remove the delivery pipe & injector assembly (B) after loosening the mounting bolts (A).
|
| 6. |

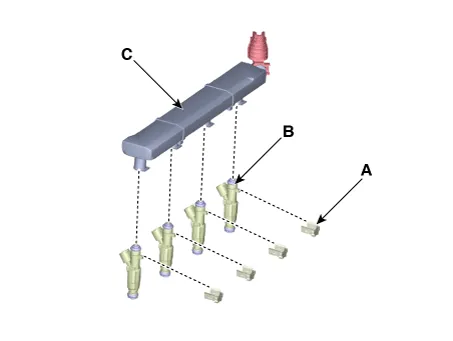

Separate the injector (B) from the delivery pipe (A) after removing the clip (C).
|
| Installation |
| 1. |
Install in the reverse order of removal. |
Note the followings when mounting the injector on the delivery pipe.
|
