Kia Optima DL3: Body (Interior and Exterior) / Floor Console
Components and components location
| Components |

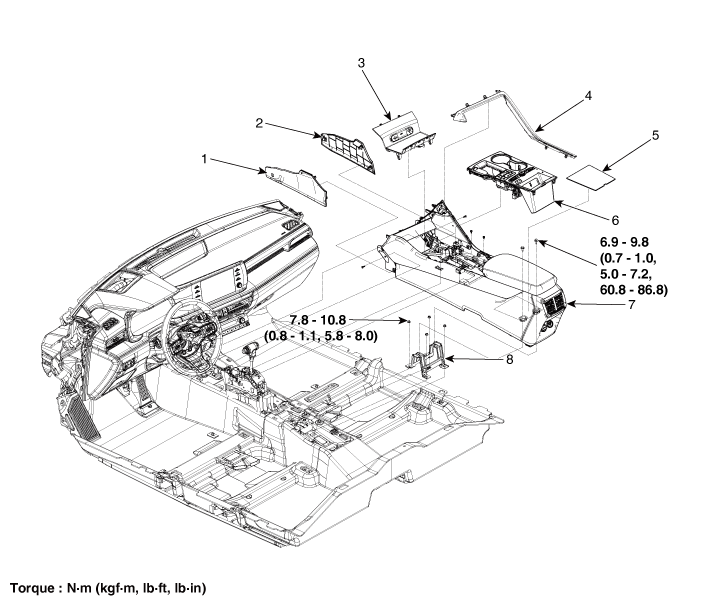

[SBC Console]
| 1. Console side cover [LH]
2. Console side cover [RH] 3. Console tray 4. Console upper garnish |
5. Console armrest mat 6. Console upper cover 7. Floor console assembly 8. Console rear mounting bracket |

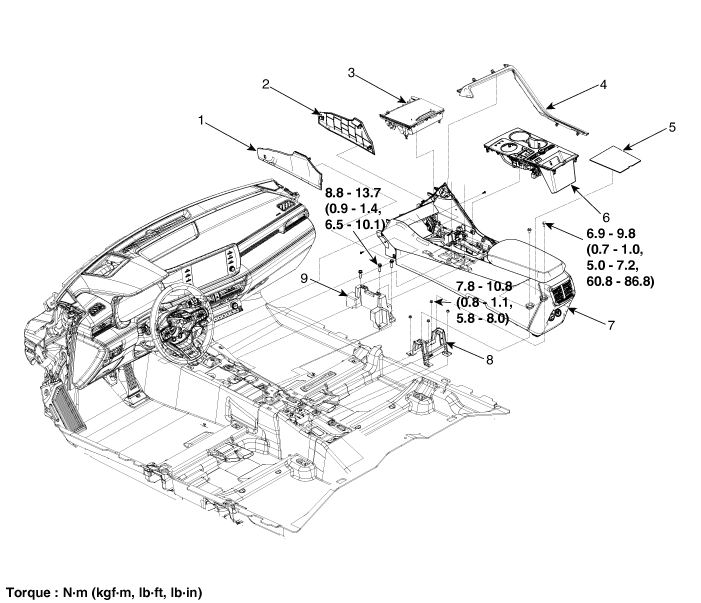

[SBW Console]
| 1. Console side cover [LH]
2. Console side cover [RH] 3. Console tray 4. Console upper garnish 5. Console armrest mat |
6. Console upper cover 7. Floor console assembly 8. Console rear mounting bracket 9. Console front mounting bracket |
Components and components location Component Location 1. Cowl top cover Repair procedures Replacement • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Components and components location Component Location 1. Front console assembly Repair procedures Replacement [SBC Console] • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
